360° Extraction Table
ROTATABLE EXTRACTION TABLE WITH FRONT EXTRACTION

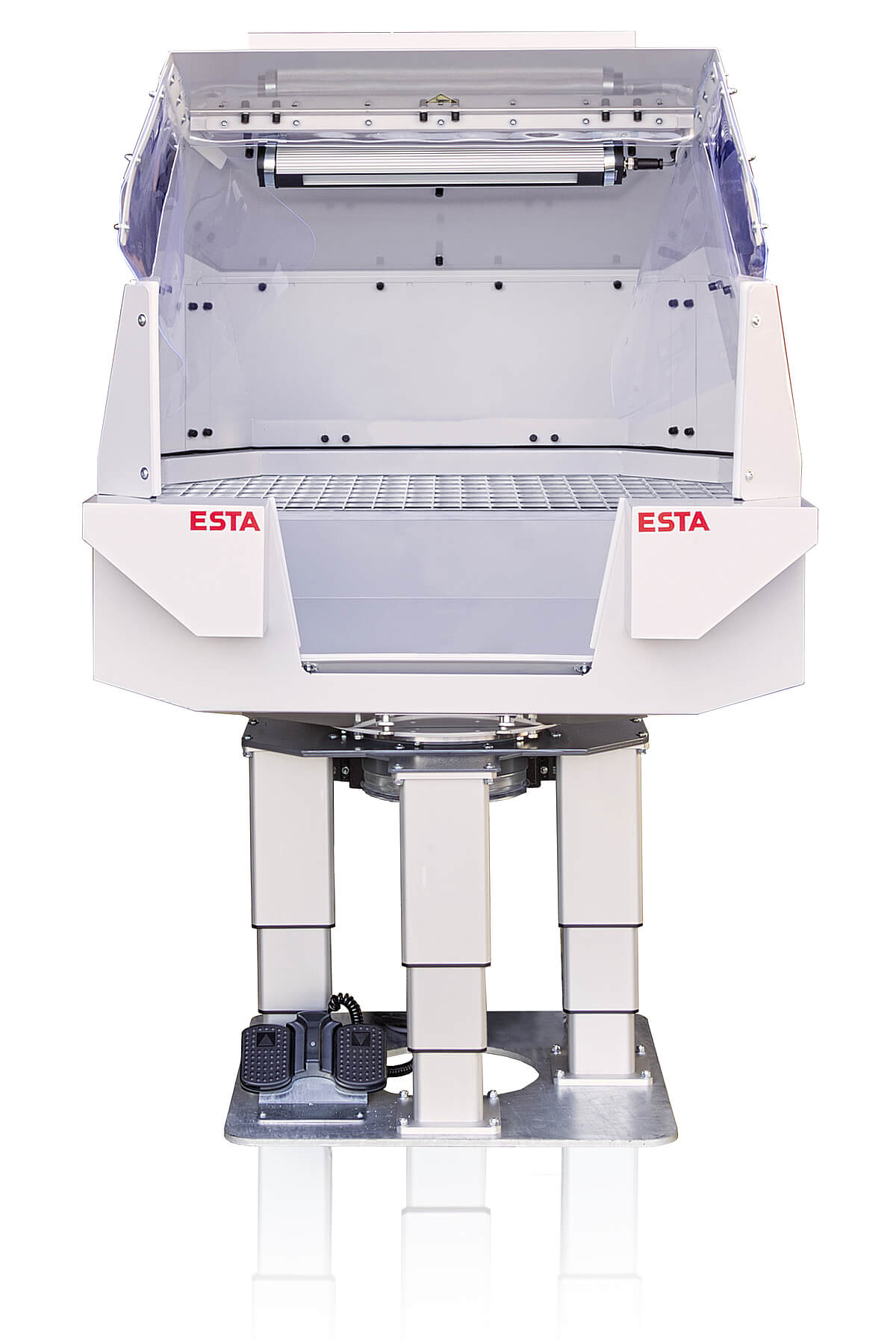

360° EXTRACTION TABLE

ROTATABLE EXTRACTION TABLE FOR CONNECTION TO AN EXTRACTION SYSTEM OR A FAN

The 360° extraction table is especially suitable for mechanical and thermal separation processes. It comes as standard with a quality vice. The turning function of the table around its own axis allows users all-round access to their workpiece - which reduces time-consuming clamping processes. Thanks to the optimised airflow and the flexible hood over the working area, the 360° extraction table effectively protects employees from dust and fumes. The ergonomically designed and, if desired, height-adjustable construction also ensures safe and pleasant working conditions.

Gallery 360° extraction table

Application 360° extraction table

  • For connecting to fan or extraction system
  • Work table for welding, grinding and de-burring of metals
  • Can also be used for other applications

  • Welding, soldering
  • Sawing, cutting, separating
  • Grinding, polishing
  • Machining, milling

  • Metal dusts
  • Welding fumes
  • Plastic chips
  • Vapours
  • Fumes
  • CFK / GFK dusts
  • Mineral dusts
  • Concrete dust

Stationary setup

Fixed extraction systems which can be connected next to processing machines.

ATEX-COMPLIANT

For use in areas subject to risk of explosion.

  • Welding table extraction / welding table extraction directly at the workplace
  • Greater efficiency when processing workpieces
  • Time saving due to fewer clamping stages
  • Process shortened due to shorter cycle times
  • Less pollution of the workplace
  • Optimised work protection

  • Accessible from all sides (360 degrees)
  • Maximum workpiece width: 900 mm (with closed walls)
  • Height adjustment: 980 to 1,180 mm
  • Needs about 2,500 m³/h air volume
  • Extraction nozzle in the front area
  • Adjustable end stop
  • Vice
  • Side panel hinged

  • Lighting
  • Good ergonomics due to optimal, continuous height adjustment
  • ATEX-compliant
  • Hood
  • Device support

Downloads & Data 360° extraction table

Extraction table 360°
Connection diameter
mm
250
Dimensions (L/W/H) (without hood)
mm
1.000 x 1.140 x 970
Dimensions (L/W/H) (with hood)
mm
1.000 x 1.400 x 970
Weight
kg
160
