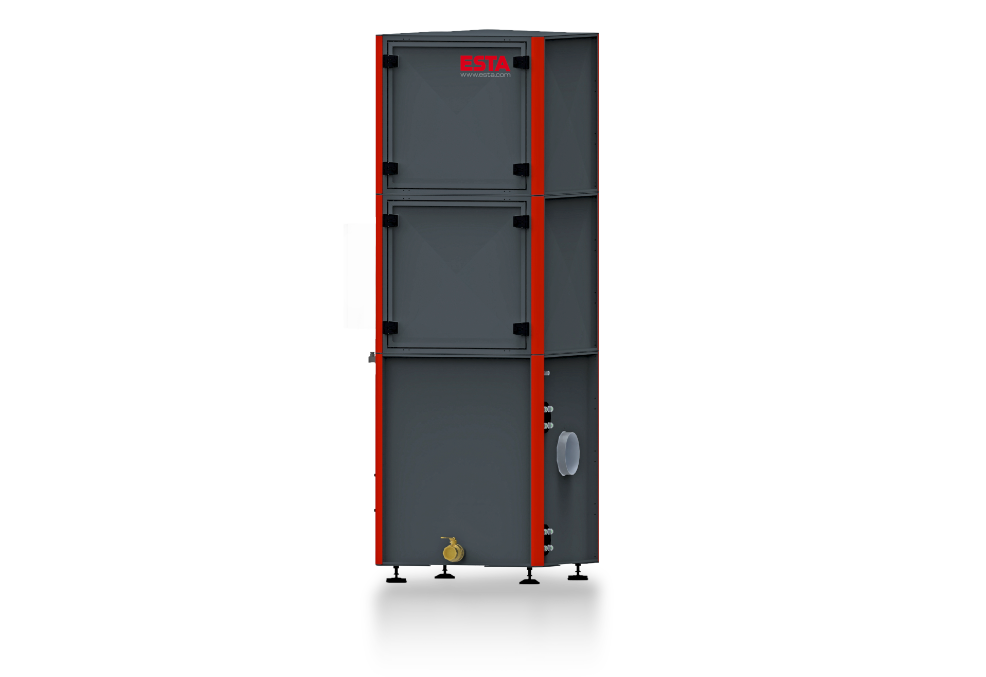

DUSTOMAT HYDRO
New wet separator for use during grinding, brushing and polishing

DUSTOMAT HYDRO-Series

EFFICIENT WET SEPARATORS WITH INNOVATIVE SEPARATION TECHNOLOGY.

The new wet separators of the DUSTOMAT HYDRO series are ideal for work processes with flying sparks, as well as for the extraction of highly flammable substances. Thanks to innovative water separation technology, the extracted materials are safely bound in water, in contrast to a usual dry process, and can be discharged via a drain cock. The extracted air then runs through a multi-stage filter system, which is configured according to the application. The highly effective HEPA H 14 filter (separation efficiency > 99.995 %) is particularly suitable for filtering hazardous dusts, which means that the cleaned air can then be returned to the room.
The compact wet filter units are suitable for single and multi-station extraction, for example for metallic dusts, especially in grinding, brushing and polishing processes. The DUSTOMAT HYDRO wet separators are particularly quiet in operation and are available in two performance levels.


Gallery DUSTOMAT HYDRO-series

Application DUSTOMAT HYDRO-series

  • Single and multi-station extraction for industry and trade
  • Extraction of metallic dusts that produce flying sparks
  • Suitable for machining high-alloy and unalloyed steels as well as titanium and aluminium (DGUV 109-001)
  • Suitable for extracting explosive materials (ATEX-compliant)
  • As a central extraction unit with collecting pipe and several extraction points

  • Sawing, cutting, separating
  • Grinding, polishing
  • Machining, milling
  • Refilling, empyting, mixing
  • And much more

  • Metal dusts
  • Stainless steel dusts
  • Aluminium dusts
  • Titanium dusts
  • Metal chips
  • And much more

Stationary setup

Fixed extraction systems which can be connected next to processing machines.

ATEX-COMPLIANT

For the extraction of explosive materials.

  • Strong extraction power combined with maximum efficiency
  • Safe solution for flying sparks
  • High separation efficiency thanks to multi-stage filtration
  • Compact design
  • Low-noise system operation
  • Economical energy and water consumption
  • Recirculation / exhaust air operation possible
  • Indoor or outdoor installation
  • Easy to operate and maintain
  • Low running costs

  • Available in two power levels
  • Innovative water separation technology (separation efficiency > 92 %)
  • Configurable filter system (up to 4 filter stages possible)
  • Optional HEPA H 14 filter (separation efficiency ≥ 99.995 %) for carcinogenic substances
  • Automatic filling monitored by sensors

  • ATEX-compliant design
  • Selectable filter media
  • Variable position of the intake manifold
  • Special paint finish

Downloads & data DUSTOMAT HYDRO-series

DUSTOMAT HYDRO 1700 3000
Max. air volume free
m³/h
1,700 3,000
Max. vacuum pressure
Pa
2,600 3,600
Drive power
kW
3.0 5.5
Connection diameter
mm
180 224
Water connection
Inch
3⁄4 3⁄4
Dimensions (L/B/H)
mm
ca. 850 x 850 x 2,600 ca. 850 x 850 x 2,600
Weight
kg
340 380
Sound emission
dB(A)
68,5* 68,5*

*without silencer package: 73,4 dB(A)

DUSTOMAT HYDRO Order No.
Standard design X45900
