DUSTOMAT 10

MOBILE DUST EXTRACTOR FOR SINGLE-WORKSTATION EXTRACTION AT MACHINE AND MANUAL WORK STATIONS

DUSTOMAT-10

The entry-level series for dust and shavings in the mobile dust extractor segment.

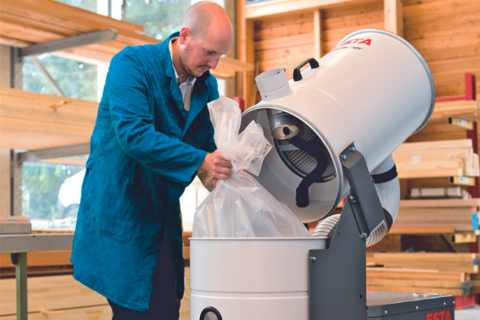

The portable DUSTOMAT-16 M dust extractors have been designed for the extraction of dusts and shavings in mobile work stations. Extraction takes place at the connection on the processing machine or by means of capturing devices, such as extraction arms and hoods. The cleanable long life filter cartridges guarantee long filter service lives and therefore low operating costs. The tilting filter housing makes it easy to dispose of the gathered material.

Gallery DUSTOMAT 10

Application DUSTOMAT 10

  • Low operating costs due to cleanable long life filter cartridges

  • Mobility in connection with high extraction performance

  • Easy dust disposal thanks to tilting filter housing

  • Suitable for almost all types of dust

  • Sawing, cutting, separating

  • Machining, milling

  • Refilling, emptying, mixing

  • Metal shavings
  • Plastic shavings
  • Die pigments
  • Tobacco fibres
  • Paper dust
  • Metal dust
  • Stone dust

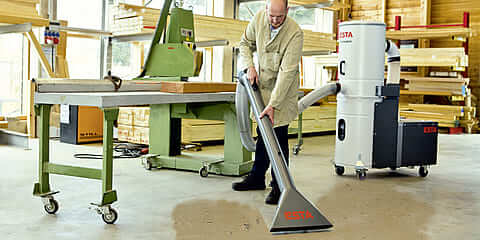

Mobile set-up

Easy and flexible to use makes it ideal for frequently-changing use locations.

Manual brush cleaning

Cartridge filters are fitted with brushes to remove dry and granulated dusts from the filter.

  • Single workstation extraction in machine- and manual work stations

  • Suitable for granulated and harmful dusts

Downloads & data DUSTOMAT 10

DUSTOMAT 10
Max. air volume flow
m³/h
720
Intake diameter
mm
100
Max. negative pressure
Pa
2,800
Intake voltage
V
230/400
Drive power
kW
1.3/1.1*
Filter surface
3.5
Dimensions (L/B/H)
mm
1,165 x 530 x 1,636
Weight
kg
120
Sound emission
dB(A)
73

* 400 V model

DUSTOMAT 10
Manual cleaning (230 V) 09201
Manual cleaning (400 V) 09215
