ESTA Absaugtechnik & -anlagen

DUROSOG-I-D

POWERFUL INDUSTRIAL VACUUM CLEANER FOR DRY, STICKY DUST

DUROSOG-I-D

Industrial vacuum cleaner, A/C version, for uninterrupted operation.

DUROSOG-I-D series is sure to impress thanks to its special filter technology for extracting dry dust, coarse abrasions, sticky dusts, shavings and materials which tend to form clumps. In this two-stage process, a pre-separator absorbs the coarse dirt. The fine dust is then captured by the disposable filter. DUROSOG-I-D (A/C variant) is designed for uninterrupted operation and is easy to move thanks to its smooth-turning castors.

Gallery DUROSOG-I-D

Application DUROSOG-I-D

  • A/C version for defined uninterrupted operation - ideal for sticky materials and dusts which have a tendency to form clumps

  • Cleaning wok in machines, workshops and in production halls

  • Sawing, cutting, separating
  • Grinding, polishing
  • Machining, milling
  • Cleaning
  • Drilling
  • Turning

  • Chemical dusts

  • Metal shavings

  • Paper dusts

  • Tobacco fibres

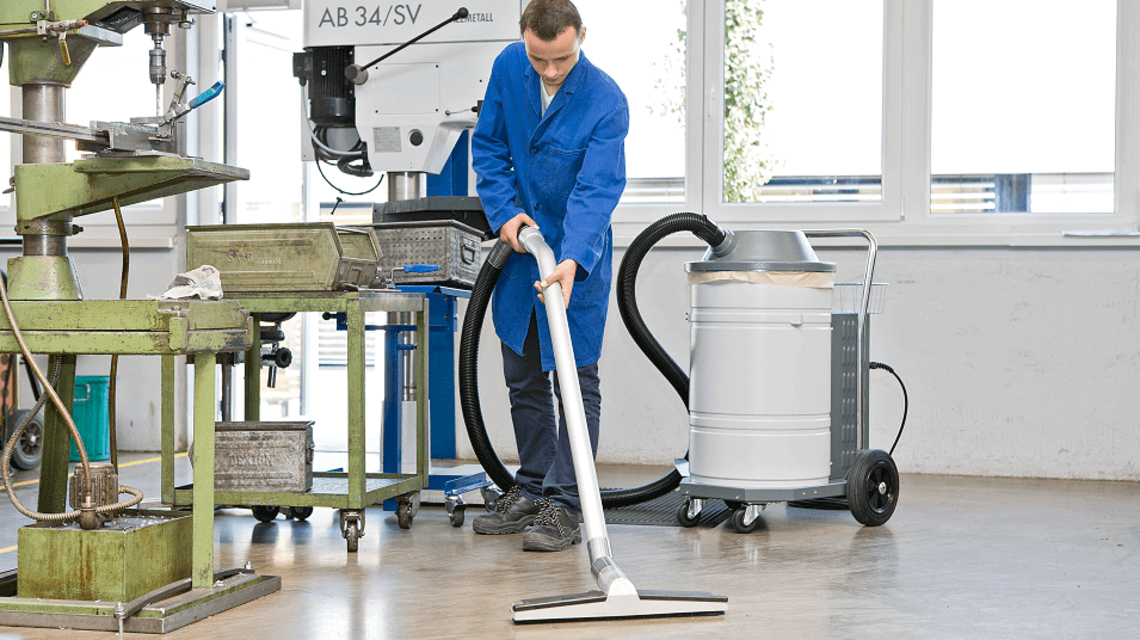

Mobile set-up

Easy and flexible to use makes it ideal for frequently-changing use locations.

Dust class M

Suitable for the extraction of harmful dusts.

Dust class H

Suitable for the extraction of all harmful/carcinogenic dusts.

ATEX-Zone 22

For extracting dry, combustible, non-conductive dusts in Zone 22.

  • Special filter technology for sticky dusts and materials which tend to clump
  • Easy disposal of gathered dust using paper filters
  • Small space requirement due to compact design

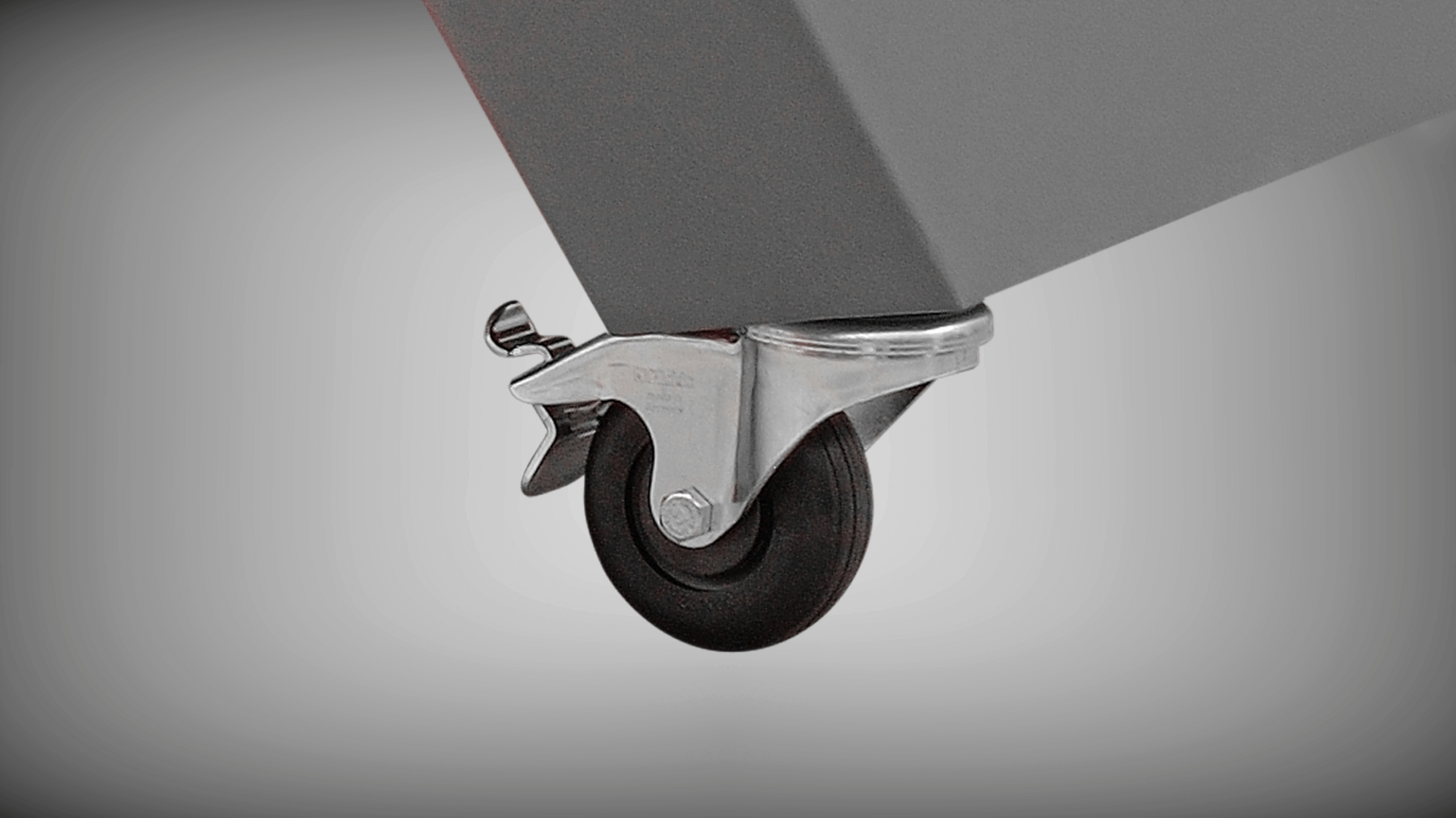

  • Smooth-turning castors provide high mobility

  • Suitable for defined uninterrupted operation (A/C vacuum cleaner)
  • Integrated pre-separator for coarse dirt
  • Replaceable paper filter

Downloads & data DUROSOG-I-D

DUROSOG I-D
Max. air volume flow
m³/h
275
Intake diameter
mm
50
Max. negative pressure
Pa
22,000
Intake voltage
V
400
Drive power
kW
2.2
Filter surface
3
Dust collection sack
l
70
Dimensions (L/B/H)
mm
850 x 630 x 950
Weight
kg
80
Sound emission
dB(A)
72

* Filter only on tested model

DUROSOG I-D
DUROSOG I-D/N (standard design) 8120 N
DUROSOG I-D/M (dust class M) 8120 M
DUROSOG I-D/H (dust class H) 8120 H
DUROSOG I-D/M/B22 (dust class M and additional test B22) 8121 B
DUROSOG I-D/H/B22 (dust class H with additional test B22) 8122 B

Contact

WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION

We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!

Do you have any questions about our products or services? We are happy to help!
How can we reach you?
How can we help you further?

Accessories

Vacuum cleaner accessories

Flexible uses for a range of applications.

Paper filter bag

Disposable bags for collecting gathered dust for low-dust disposal.
