OILMAC

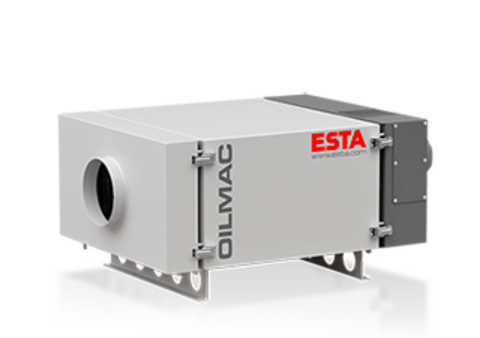

COMPACT AND POWERFUL OIL MIST SEPARATOR

OILMAC

Oil mist separators for extraction of vapours, aerosols, and mist particles.

OILMAC devices are usually installed directly on the enclosure of the machine and connected via a hose. The 3-stage filter system effectively absorbs the cooling lubricant mist and smoke that arises during the machining process. The separated cooling lubricant can be fed back into the machine. Thanks to a filtration performance of 99.95%, the filtered air is fed back into the work area directly on the upper side of the device.


Gallery OILMAC

Application OILMAC

  • Extraction of oil and emulsion mist, minimal lubrication mist and smoke

  • For attachment on top of and at CNC machines

  • Dusts

  • Gases

  • Odours

  • Fume gases

  • Sawing, cutting, separating

  • Grinding, polishing

  • Machining, milling

  • Drilling

  • Turning

  • Preserving

  • Cleaning

  • Scrubbing

  • Easy attachment on or next to processing machine

  • Available in four power levels

  • Compact design

  • Multiple filter system offers high filtration efficiency

  • Filter replacement and service work possible toollessly

  • Proprietary housing concept allows for tool-less filter change

  • Manual cleaning

  • Mechanical filtration

  • Also available as a filter unit without fan

  • Special voltage

  • Exhaust air ports

  • Special paintwork

  • Chassis for OILMAC 800 / 1600

Downloads & data OILMAC

OILMAC 400 800 1600 3000
Max. air volume current
m³/h
420 840 1800 3300
Connection diameter
mm
150 200 250 300
Connection voltage
V
230 400 400 400
Nominal power
kW
0,24 0,55 1,1 2,2
Dimensions (L/W/H)
mm
640 x 650 x 510 1.140 x 685 x 475 1.270 x 685 x 805 1.790 x 650 x 1.265
Sound pressure level
dB(A)
66 69 71 74
OILMAC 400 800 1600 3000
Design with HEPA backup filter 56200 56201 56202 56203
Design with backup filter made of metal mesh - 56211 56212 56213
Filter unit without fan - 56221 56222 56223

CONTACT OILMAC

WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION

We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!

Do you have any questions about our products or services? We are happy to help!
How can we reach you?
How can we help you further?

Accessories OILMAC

Extraction hood

Optimal capture directly at origin. Flanged, square or modular system extraction hoods are available depending on the application.

Extraction hoses

Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.

Pipe system

For connecting multiple suction points to a central extraction unit. Extensive range of sturdy, high-quality finish spiral seam pipe parts.
