DUSTOMAT TOWER
Efficient indoor air purification without a duct system – flexible to integrate and relocate.

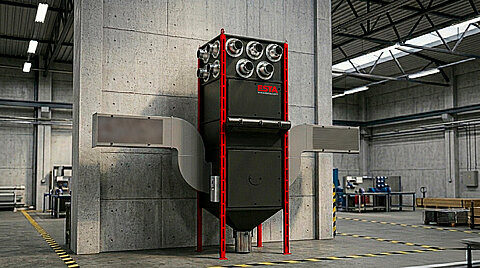

The DUSTOMAT TOWER is used to extract welding fumes in production halls when localised extraction is insufficient or direct extraction from large workpieces is not practicable. As a stand-alone solution, the hall ventilation system requires no additional pipework, can be integrated quickly and can be flexibly repositioned to accommodate changes in production.
Welding fumes are captured via the system’s two side intake channels and reliably fed to the filter unit. There, highly efficient filter cartridges purify the air with a separation efficiency of up to 99.9 per cent. The purified air is then returned to the production hall in a controlled manner via long-throw nozzles.
An integrated frequency converter also enables the DUSTOMAT TOWER’s performance to be regulated according to demand, helping to reduce energy consumption.
*AI-generated background

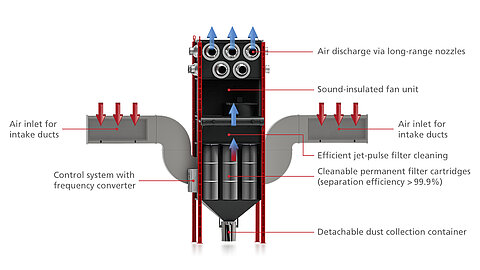

How the DUSTOMAT TOWER works
Filter unit

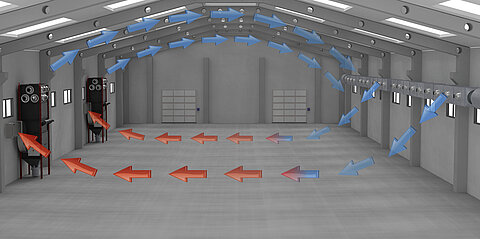

Push-pull ventilation
The push-pull principle of the DUSTOMAT TOWER workshop ventilation system ensures controlled air flow within the production hall. Air containing welding fumes is drawn in via the two side intake ducts of the DUSTOMAT TOWER, purified in the filter unit and then returned in a controlled manner via long-throw nozzles to the production hall, where it is distributed evenly. At the same time, an optional opposing air duct ensures that the air containing welding fumes is continuously channelled to the filter system, thereby supporting the effective purification of the hall air.
- A supplementary solution for complying with dust limit values when local extraction alone is insufficient
- To support direct extraction
- Improves indoor air quality
- For welding processes where local extraction is not feasible
- For easy integration into existing production environments
- Welding
- Soldering
- Welding fumes
- Soldering fumes

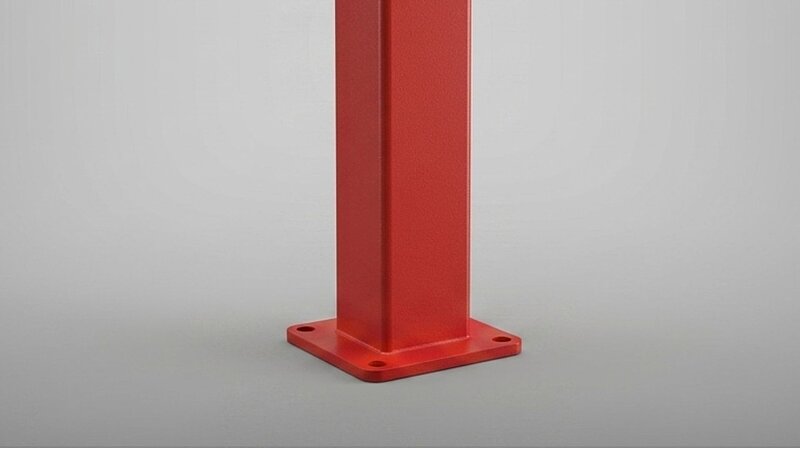

Stationary installation
The DUSTOMAT TOWER is secured to the floor using a base plate to ensure it stands firmly.
DynamicPulse filter cleaning
The new generation of compressed-air-controlled cartridge filter cleaning. Saves up to 50% on running costs.
- Air quality is improved for all staff in the production halls
- Helps ensure compliance with statutory dust limit values
- Frequency converter for adjustable and energy-efficient system operation
- Powerful and quiet extraction
- No pipework installation required
- Robust, durable steel construction
- Versatile in use, easy to move by crane
- Low running costs thanks to cleanable permanent filter cartridges
- High efficiency of filter cleaning during suction operation
- The system size can be adapted to the specific application thanks to its modular design
- Can be retrofitted in a modular fashion
- Integrated impact separator
- Permanent filter cartridges with nanofibres (separation efficiency 99.9%)
- Draught-free air outlet via long-throw nozzles on the top of the unit
- Low-dust emptying of the dust collection bin
- Additional air duct to aid air circulation in the hall
Downloads & Data DUSTOMAT TOWER
| DUSTOMAT TOWER | F-100 |
|---|---|
|
Intake port mm | 2x 250 x 600 |
|
Long-range nozzles Stück | 11 |
|
Drive power* kW | 11,0 |
|
Number of cartridges Stück | 4 |
|
Dust container l | 30 |
|
Dimensions excluding the intake system (L/W/H) mm | 1.370 x 1.770 x 4.420 |
|
Dimensions including intake system (L/W/H) mm | 1.370 x 6.200 x 4.420 |
*Supply voltage/rated frequency: 400 V/50 Hz
| DUSTOMAT TOWER | F-100 |
|---|---|
| Standard version | 662100 |
