HIGH-PRESSURE FANS HDV
HIGH-PRESSURE FANS FOR EXTRACTION AT MULTIPLE WORKSTATIONS

HIGH-PRESSURE FAN HDV

Low operating costs through high efficiency.

The HDV high-pressure fans connect high negative pressure and high air volumes. This ensures a steady plant characteristic curve and a constant extraction performance at different operating points. In connection with a filter unit and pipe system, a high-pressure fan can be used as a central extraction unit for the extraction of dusts, shavings or welding fumes. The low-noise fan mounted in the sound enclosure is installed separately next to the filter system.

Application HDV series

  • High-pressure fans for multiple-site extraction

  • Ideal as a component for a central extraction system

  • Feed and exhaust air blower (e.g. For cooling)

  • Central welding fume extraction

  • Applications needing a very constant negative pressure with high air flow rate

  • Central extraction

  • Welding

  • Welding fumes

  • Dusts

  • Shavings

Stationary setup

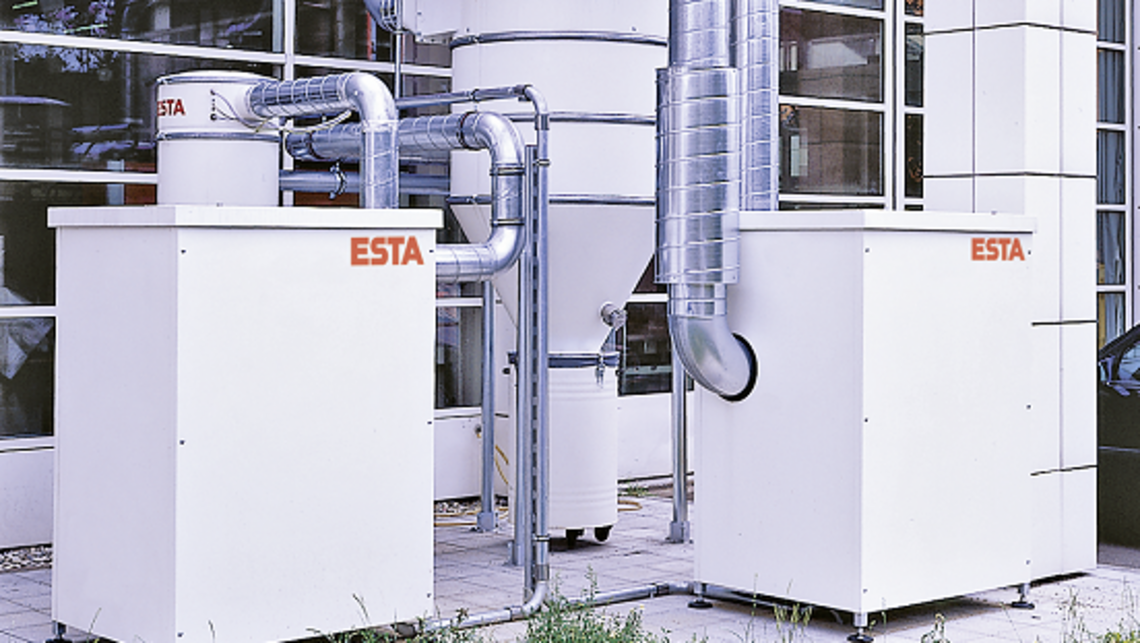

Central extraction systems are able to carry out extraction on multiple machines in parallel from its location via a pipe system.

  • Constantly high air volume free

  • Low operating noise through sound isolation

  • Wear- and maintenance-free construction

  • Low operating costs through cleanable filters and high energy-efficiency

Downloads & data HDV series

High-pressure fan HDV 11 18.5 22 30
Max. airflow
m³/h
2,000 3,000 3,800 6,000
Intake**
mm
260 250 280 355
Max. negative pressure
Pa
8,200 10,300 10,400 10,300
Nominal power*
kW
11.0 18.5 22.0 30.0
Motor speed
rpm
3,000 3,000 3,000 3,000
Dimensions (B/H/T)
mm
1,310 x 1,676 x 1,600 1,310 x 1,676 x 1,600 1,310 x 1,676 x 1,600 1,310 x 1,676 x 1,600
Sound level
dB(A)
73 73 76 79

*Mains voltage/ Mains frequency: 400V/50Hz

Other devices upon request / ** = depending on application case

High-pressure fan HDV 11 18.5 22 30
Standard version 301002 301003 301004 301005
