SIDE CHANNEL COMPRESSOR TDS/TDP
SIDE CHANNEL BLOWER FOR HIGH-VACUUM EXTRACTION

TDS/TDP

High suction force for large smoke and dust volumes.

The TDS/TDP side channel blowers generate a high negative pressure and are thus the ideal unit for high-volume extraction (for example, for central dust extraction systems). They are maintenance- and wear-free and operate extremely low-noise. A range of different device variations is available for selection based on needs and individual requirements. With an upstream filter unit, these side channel blowers from the TDS/TDP series are also suitable for the extraction of dusts and shavings.

Application TDS/TDP series

  • Multiple-workstation extraction with high negative pressure requirements in the industry

  • Multi-shift operation possible

  • Optional: ATEX version

  • High-vacuum extraction

  • Shavings

  • Dusts

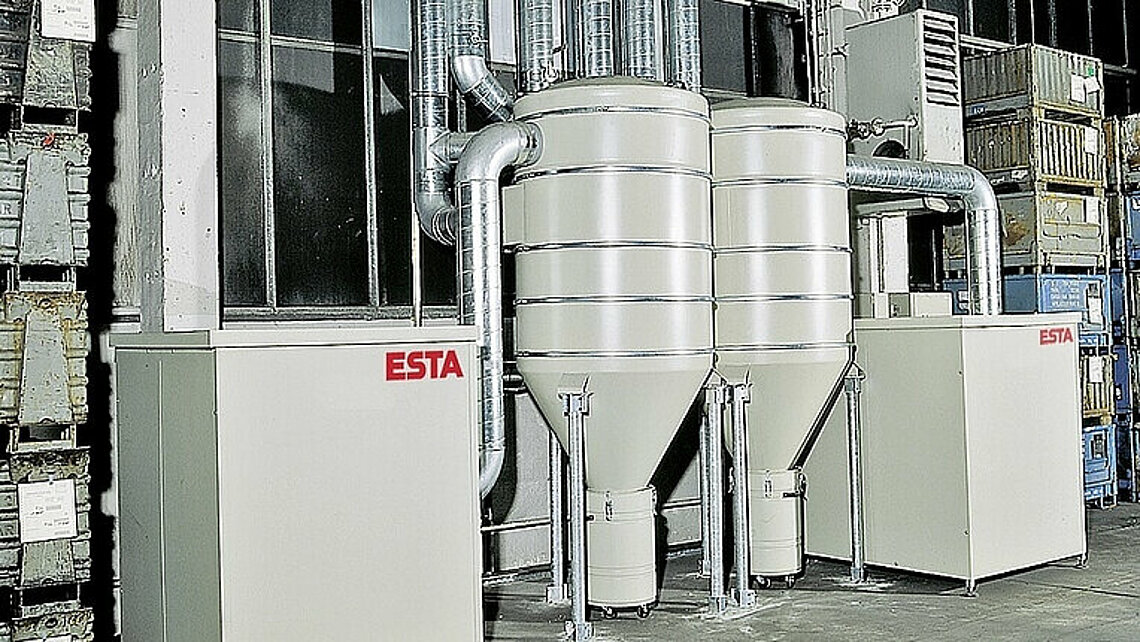

Stationary setup

Central extraction systems are able to carry out extraction on multiple machines in parallel from its location via a pipe system.

ATEX-Compliant

ATEX-COMPLIANT

For use in areas subject to risk of explosion.

  • High negative pressure

  • Low operating noise through sound isolation and separate placement

  • Wear- and maintenance-free construction

  • Low operating costs through cleanable filters and high energy-efficiency

Downloads & data TDS/TDP series

Side channel compressor TDS-13 TDS-18.5 TDS-22 TDP-11 TDP-18.5 TDP-22 TDP-26
Max. air volume
m³/h
1,140 1,140 1,140 790 2,100 2,100 2,100
Intake
mm
140 140 140 100 180 180 180
Max. negative pressure
Pa
23,500 38,000 40,500 30,000 23,500 27,000 31,500
Nominal power*
kW
13.0 18.5 22.0 11.0 18.5 22.0 26.0
Motor speeds
1/min
3,000 3,000 3,000 3,000 3,000 3,000 3,000
Dimensions (B/H/T)
mm
990 x 1,730 x 1,200 990 x 1,730 x 1,200 990 x 1,730 x 1,200 990 x 1,730 x 1,200 990 x 1,730 x 1,200 990 x 1,730 x 1,200 990 x 1,730 x 1,200
Sound level
dB(A)
78 96 90 85 93 88 93

*Mains voltage/ Mains frequency: 400V/50Hz

Side channel compressor TDS-13 TDS-18.5 TDS-22 TDP-11 TDP-18.5 TDP-22 TDP-26
Standard version 301101 301103 301105 301100 301102 301104 301106
