MEDIUM-PRESSURE FANS MDV

MEDIUM-PRESSURE FANS FOR LARGE VOLUMES OF AIR

Medium-pressure fans MDV

Can be used as a fan or vacuum generator in extraction systems.

ESTA MDV medium-pressure fans can be used to move large volumes of air at constant negative pressure. This ensures a steady plant characteristic curve. A constant extraction performance at different operating points is also guaranteed. High energy efficiency means low operating costs. In tandem with upstream filter unit, MDV series medium-pressure fans are also ideal for extraction of dusts and shavings.

Application MDV series

  • Medium-pressure fans for multiple-site extraction

  • Ideal as a component for a central extraction system

  • Feed and exhaust air blower (e.g. For cooling)

  • Central welding fume extraction

  • Applications needing a very constant negative pressure with high air flow rate

  • Central extraction

  • Welding

  • Shavings

  • Dusts

  • Welding fumes

Stationary setup

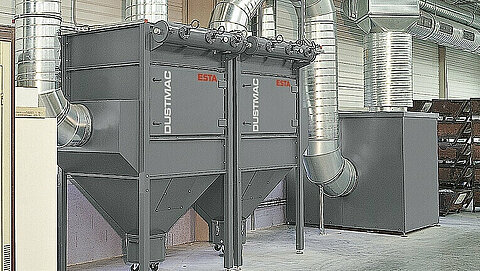

Central extraction systems are able to carry out extraction on multiple machines in parallel from its location via a pipe system.

  • Constantly high air volume free

  • Low operating noise through sound isolation

  • Wear- and maintenance-free construction

  • Low operating costs through cleanable filters and high energy-efficiency

Downloads & data MDV series

Medium-pressure fans MDV 7.5 15
Max. air volume flow
m³/h
3,400 6,700
Intake diameter*
mm
280 355
Max. negative pressure
Pa
4.400 4.500
Intake voltage
V
400 400
Drive power
kW
7.5 15.0
Motor speed
rpm
3,000 3,000
Dimensions (B/H/T)
mm
1,310 x 1,676 x 1,600 1,310 x 1,676 x 1,600
Sound emission
dB(A)
69 73

* Depending on the use case

Medium-pressure fan MDV 7.5 15
Standard version 301000 301001
