PLASMA CUTTING TABLE
COMPACT EXTRACTION TABLE WITH INTEGRATED WATER PANS FOR PRE-SEPARATION

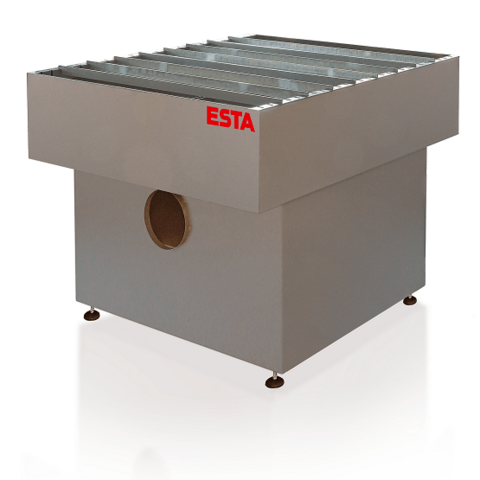

PLASMA CUTTING TABLE

PLASMA CUTTING TABLE WITH WATER PANS FOR SEPARATION AND PLASMA CUTTING PROCESSES

The plasma cutting table is suitable for both thermal and mechanical or flameless separation processes. The compact downdraft table is equipped with water pans, which serve as material and spark pre-separators. This means that coarse particles and slag can be collected directly without polluting the filters of the connected extraction system. The sturdy construction stands up to even high thermal stresses without warping. The multiple deflection of the airflow effectively protects the user from flying sparks and harmful dust and fumes. The inspection opening and easily removable components allow for easy cleaning. In addition, the height-adjustable construction of the plasma cutting table ensures a comfortable and safe workplace, and thus a successful cutting result.


Application PLASMA CUTTING TABLE

  • Plasma cutting table with water pans for separating and plasma cutting processes
  • For connecting to an extraction unit or cutting unit

  • All mechanical and thermal separating processes and cutting processes and cutting applications
  • Plasma cutting
  • Thermal cutting

  • Metal dusts
  • Vapours
  • Fumes

Stationary setup

Fixed extraction systems which can be connected next to processing machines.

  • Extraction directly at the workplace
  • Compact solution
  • Protects from harmful particles and fumes caused by thermal separation
  • Easy disposal of coarse dirt and sludge via the water pans

  • Water pans as material and sparks pre-separators
  • Multiple deflection of the air flow to reduce the risk from flying sparks
  • Flat bar support and water pans easily removable
  • Inspection opening for cleaning the inner housing
  • Height adjustable

  • Special paint

Downloads & Data Plasma cutting table

Extraction table Plasma cutting table
Work surface (L/W)
mm
1.100 x 1.100
Working height min./max.
mm
880 / 950
Connection diameter
mm
200
Dimensions (L/W/H)
mm
1.104 x 1.100 x 900
Weight
kg
135
Permitted loading weight
kg
200
