DUSTMAC S

HOSE FILTER SYSTEM FOR EXTRACTION OF LONG-FIBRE AND STICKY DUSTS

DUSTMAC S

Modular dust extractors with wide range of applications.

The stationary DUSTMAC S (with cartridge filter) dust extractors are used as a central extraction unit or single-work station extraction with high air volume requirement. They are ideal for extracting dusts which, due to their temperature, moisture, and hygroscopy, have a tendency to stick to the filter media (e.g., cement dust, chalk, soot, glass fibres). Higher filter surface loads are achievable than with cartridge filters.

The installation can subsequently be expanded at any time due to its modular construction.

Gallery DUSTMAC S

Application DUSTMAC S

  • Multiple extraction of industrial dust

  • Suitable for fine, long-fibre and sticky dusts

  • Hose filter system for central extraction system

  • Sawing

  • Cutting

  • Separating

  • Machining

  • Milling

  • Cotton wool fibres

  • Chemical dust

  • CFRP-/GFRP dust

  • Flock dust

  • Plastic dust

  • Chalk

  • Metal shavings

  • Paper strips

  • Soot

  • Cement dust

Stationary setup

Fixed extraction installations which can be connected next to processing machines or centrally in production halls.

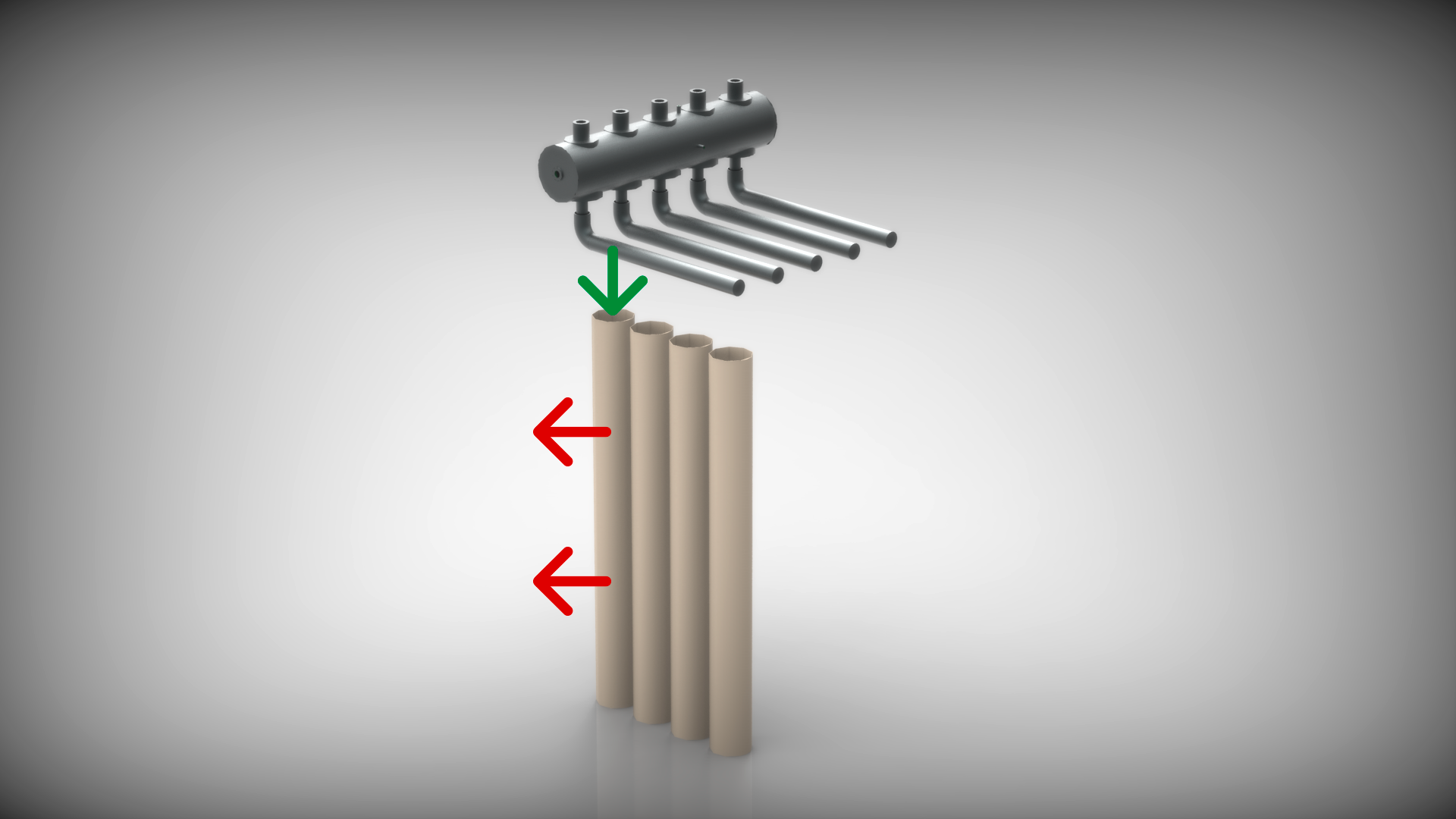

Jet-Pulse filter cleaning

Jet-Pulse filter cleaning cleans the filter cartridges individually automatically during and after suction.

ATEX-COMPLIANT

For use in areas subject to risk of explosion.

  • Powerful extraction turbine

  • Built-in compressed air cleaning nozzle

  • Cleanable hose filter (dust class M)

  • Custom filter materials

  • Custom paint finish

  • Fan has different performance levels

  • Pre-separator

  • Coated for outdoor installation

  • ATEX model

Downloads & data DUSTMAC S

DUSTMAC S-5 S-10 S-17 S-25 S-33
Max. air volume flow
m³/h
3,00 3,500 4,500 5,400 9,700
Intake/outlet diameter
mm
160/280 200/400 224/355 280/400 355/400
Max. negative pressure
Pa
2,000 3,800 3,800 3,200 3,800
Intake voltage
V
400 400 400 400 400
Drive power
kW
2.2 3.0 4.0 5,5 7.5
Filter surface
5 84 84 25 33
Number of filter elements
piece
13 4 4 48 48
Dust collection container
50 50 50 50 50
Dimensions (L/B/H)
mm
1,400 x 1,055 x 3,465 1,400 x 1,310 x 3,410 1,400 x 1,310 x 3,410 1,820 x 1,750 x 3,990 1,880 x 1,750 x 4,400
Weight
kg
67 540 540 76 82
DUSTMAC S-5 S-10 S-17 S-25 S-33
Standard design 662005 662010 662017 662025 662033
