DUSTOMAT 4

NEW GENERATION OF DUST EXTRACTOR AND WELDING FUME FILTER WITH GREATER PERFORMANCE AND IMPROVED ENERGY EFFICIENCY

DUSTOMAT 4

New mobile dust extractors have undergone significant development in design and technology.

The new mobile DUSTOMAT 4 dust extractors and welding fume filters offer a considerable increase in suction power with the same level of energy efficiency. Thanks to its innovative housing construction, this means a better extraction result with low current and compressed air consumption. This equipment is suitable for almost any industry and effectively extract dusts, shavings and fumes arising from the processing of metal or plastic, for example. The long life filter cartridges are cleanable offering a long service life.

Whether as eco+ variant, with W3 certificate, in ATEX-compliant design, with H test mark or with Industry 4.0 functions: The DUSTOMAT 4 units offer a proven extraction solution for almost all applications in the medium power range.

Gallery DUSTOMAT 4

Application DUSTOMAT 4

  • Single- and multiple workstation extraction of granulated and dry dusts

  • Suitable for many applications

  • For the direct extraction in processing machines

  • Welding of all metals

  • For connection to capture hoods, extraction arms, and small pipe systems

  • Sawing, cutting, separating

  • Machining, milling

  • Refilling, emptying, mixing

  • Welding, soldering

  • Grinding, Polishing

  • Metal shavings

  • Metal dust

  • Plastic dust

  • Plastic shavings

  • Cotton dust

  • Paper dust

  • Welding fumes

  • Soldering fumes

Mobile set-up

Easy and flexible to use makes it ideal for frequently-changing use locations.

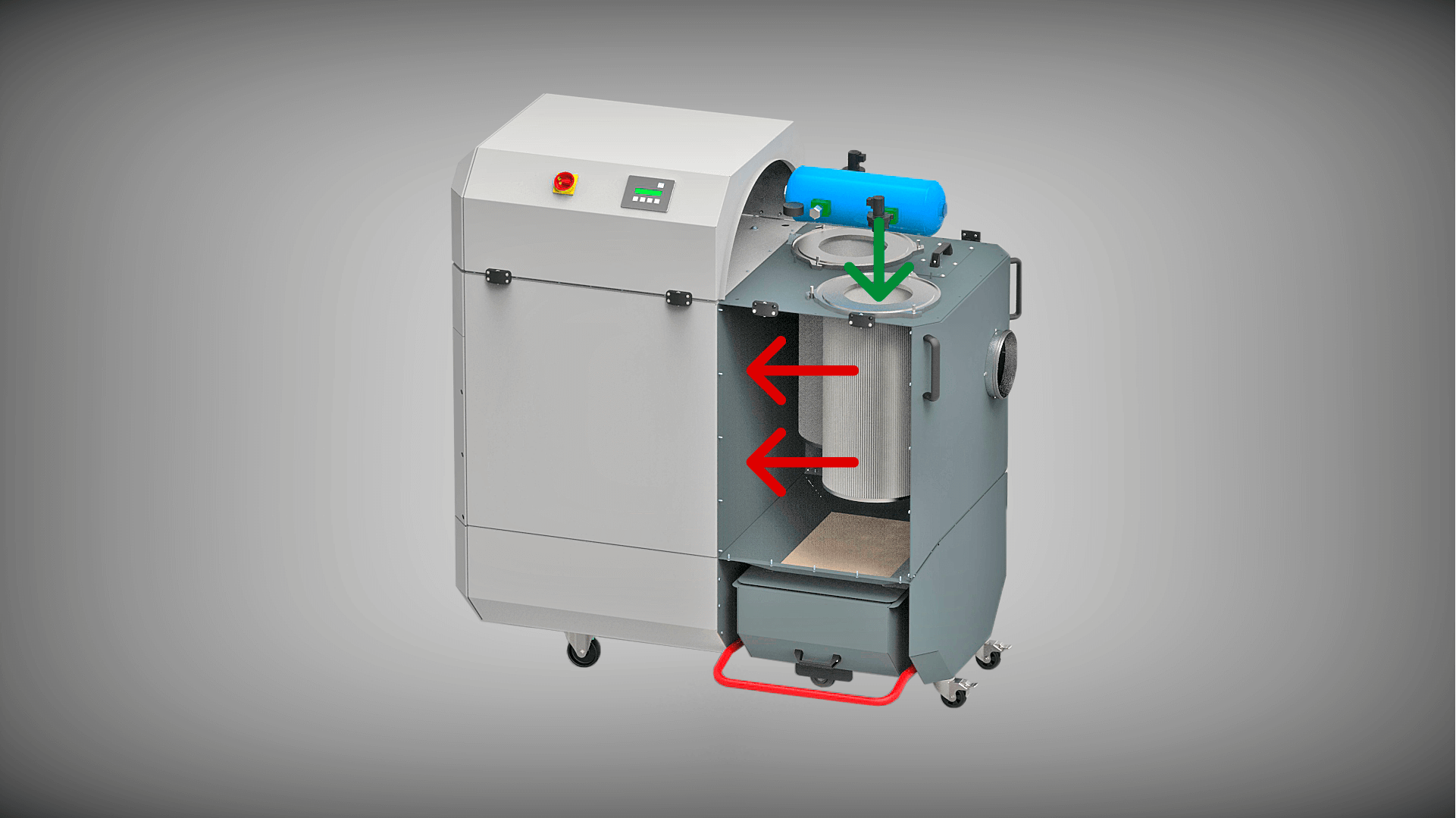

Jet-Pulse filter cleaning

Jet-Pulse filter cleaning cleans the filter cartridges individually automatically during and after suction.

Das W3 Prüfzeichen.

W3 certificate

For extracting welding fumes from high-alloy steels (in eco+ version).

ATEX-COMPLIANT

For use in areas subject to risk of explosion.

Dust class H

Suitable for the extraction of all harmful/carcinogenic dusts.

  • Strong suction force combined with high levels of mobility

  • Innovative equipment design provides ensures air flow and low operating costs

  • Very low operating noise thus can be set up directly in the work area

  • Mobile dust collection drawer for easy disposal

  • New housing construction, ensures low surface area

  • Highly operating- and maintenance friendly

  • Available in two power stages

  • Built-in impact separator for pre-separation of coarse, heavy particles

  • Jet-Pulse filter cleaning controlled by differential pressure

  • Backup filter cassette (dust class H)

  • ATEXmodel

  • Eco+ version

  • IFA test certificate W3 for high-alloy steels (for Eco+ version)

  • Pre-separators for sparks, shavings and dusts (optional)

  • Model with frequency converter

  • Stationary model

  • Custom paint finish

  • Other models upon request

Customer feedback DUSTOMAT 4

Volker Giesselmann

Volker Giesselmann

CEO of Franz Giesselmann GmbH

„The before and after effect was very apparent to us. Our employees are experiencing the benefits of optimum air quality and clean workstations. The lower cleaning requirements on our machines has also reduced ongoing costs and increased our productivity.“

Downloads & data DUSTOMAT 4

DUSTOMAT 4-10 4-10 W3 eco+
Max. air volume flow
m³/h
2,000 2,000
Intake diameter
mm
160 160
Max. negative pressure
Pa
2,600 2,600
Intake voltage
V
400 400
Drive power
kW
2.2 2.2
Filter surface
10 10
Filter elements
piece
2 2
Dust collection container
l
90 (42*) 90 (42*)
Dimensions (L/W/H)
mm
1,460 x 935 x 1,440 1,460 x 935 x 1,440
Weight
kg
230 230
Sound emission
dB(A)
68 68
DUSTOMAT 4-24 4-24 W3 eco+ 4-24 H ecopower
Max. air volume flow
m³/h
3,300 3,300 3,500
Intake diameter
mm
200 200 200
Max. negative pressure
Pa
3,600 3,600 5,000
Intake voltage
V
400 400 400
Drive power
kW
4.0 4.0 4.0
Filter surface
24 24 24
Filter elements
piece
2 2 2
Dust collection container
l
90 (42*) 90 (42*) 90 (42*)
Dimensions (L/W/H)
mm
1,660 x 935 x 1,640 1,660 x 935 x 1,640 1,660 x 935 x 1,640
Weight
kg
280 280 310
Sound emission
dB(A)
72 72 70

* with collection box

DUSTOMAT 4-10 4-10 W3 4-24 4-24 W3
Standard design 09730 - 09760 -
ATEX model 09732 - 09762 -
eco+ 09740 09739 09770 09769
Tested to dust class H 09731 - 09761 -
Tested to dust class H & ecopower - - 09781 -

Innovative control DUSTOMAT 4

The DUSTOMAT 4 series of devices are also available as a ESTAeco+ version for a maximum of efficiency and safety.
The newly-developed ESTA EasyControl device control comes into use. This ensures very strong power savings of up to 50%.

Function of ESTA EasyControl device control

  • Timer switch
  • Residual dust and filter break monitoring optional

  • Fill level measurement in the collecting container optional
  • Fully automated control and adjustment of volume flow to preset value

Contact DUSTOMAT 4

WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION

We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!

Do you have any questions about our products or services? We are happy to help!
How can we reach you?
How can we help you further?

Accessories DUSTOMAT 4

Extraction arms

For capturing welding- and soldering fume, gases, vapour and dusts. Connection to extraction system or fan possible.

Protective walls

Flexible protection walls for a safe working environment in the welding shop

Pre-separator

For pre-separation of dry, granulated dusts, shavings and sparks. Increases the service life of the main filter of the extraction installation.

Extraction hood

Optimal capture directly at origin. Flanged, square or modular system extraction hoods are available depending on the application.

Extraction hoses

Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.

Pipe system

For connecting multiple suction points to a central extraction unit. Extensive range of sturdy, high-quality finish spiral seam pipe parts.

Welding masks

Protection for eyes from dangerous welding arcs with DINplus-certified welding helmets

Dust collection box

Sealable card for ensuring low-dust disposal.
