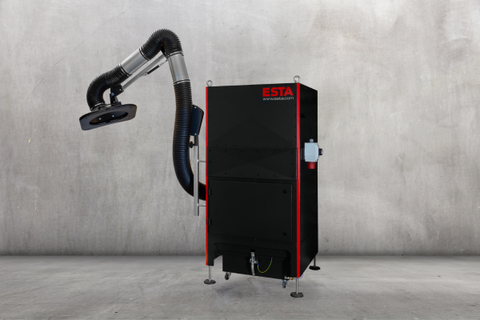

DUSTOMAT DRY S
Configurable compact dust collector series for applications up to 3,000 m³/h
In the entry-level segment, the DUSTOMAT DRY dust extractor series in size ‘S’ is the economical solution for applications with an air flow rate of 1,600 m³/h to 3,000 m³/h. The mobile devices reliably capture almost all dust generated, for example, during the processing of metal or plastic and are suitable for single and multi-station extraction – directly on processing machines, extraction tables or in combination with an extraction arm.
The modular housing concept enables the devices to be configured precisely to fit – with filter packages tailored to the specific application. ATEX-compliant versions and variants with H post-filters are also available.
The flow-optimised design and 100% recirculation mode ensure low operating costs and high extraction performance. The housing of the DRY devices is soundproofed and noticeably reduces noise emissions for employees.

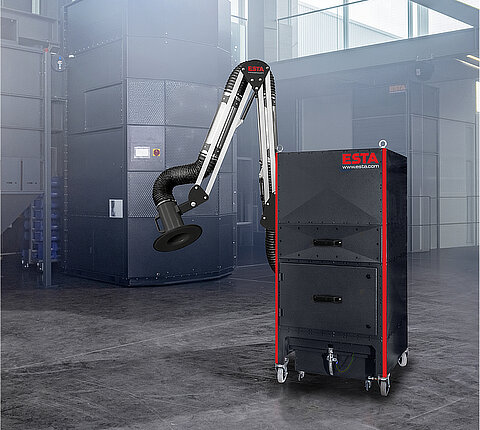

Gallery DUSTOMAT DRY – Size S
- Extraction of dry and free-flowing dusts and chips
- Depending on the design, can also be used for carcinogenic, flammable or explosive media
- Suitable for many applications, also for flying sparks
- Single and multi-user extraction for industry and commerce
- For direct extraction at processing machines
- For connection to extraction arms, extraction tables, extraction hoods as well as shorter pipe systems
- Sawing, separating, cutting
- Machining, milling
- decanting, filling, mixing
- grinding, deburring
- and much more.
- Metal dust
- Metal chips
- Chemical dusts
- CFRP/GFRP dusts
- Paper dusts
- and many more
Mobile installation
Smooth-running and flexible in use, making it suitable for frequently changing locations.
Stationary installation
Stationary extraction systems that can be connected next to processing machines.
Manual rotation filter cleaning
Thanks to a rotary nozzle connected to the compressed air network, the filter lamellas are blown through evenly.
ATEX CONFORM
For the extraction of explosive materials.
*The device is registered for testing.
DUST CLASS H
For the extraction of explosive materials.
*The device is registered for testing.
- Configurable: extraction power, filter package and system design
- Strong extraction power for optimal extraction results
- Aerodynamically optimised design for efficient air flow, resulting in low operating costs
- Low-noise system operation
- Recirculation / exhaust air operation possible
- Smooth-running castors
- Compact design
- Detachable dust collection drawer for easy disposal
- Sturdy, durable steel construction
- High level of operation and maintenance friendliness
- Suitable for medium performance ranges from 1,600 to 3,000 m³/h
- Available in four output levels
- Integrated impact separator for pre-separation of coarse and heavy particles
- ATEX design
- Pre-separator for sparks, chips and dusts
- HEPA H 14 filter (separation efficiency ≥ 99.995 %)
- Downstream activated carbon filter for odour neutralisation
- Version with exhaust air connection piece
- Variable positioning of intake connection piece, control cabinet, etc.
- Other versions on request
Downloads & Data DUSTOMAT DRY
| DUSTOMAT DRY | 1600 | 2500 | 2900 | 3000 |
|---|---|---|---|---|
|
Max. volume flow m³/h | 1,600 | 2,500 | 2,900 | 3,000 |
|
Max. negative pressure Pa | 1,900 | 2,600 | 2,750 | 3,200 |
|
Nominal power kW | 1,1 | 2,2 | 3,0 | 4,0 |
|
Mains voltage V | 230 | 400 | 400 | 400 |
|
Mains frequency Hz | 50 | 50 | 50 | 50 |
|
Dimensions (L/W/H) mm | 790 x 600 x 1,920 | 1,030 x 845 x 1,680 | 1,030 x 845 x 2,170 | 1,030 x 845 x 2,170 |
|
Intake opening mm | 160 | 160 | 200 | 200 |
|
Sound pressure level dB(A) | 65.3 | 70.9 | 71.4 | 72.7 |
| DUSTOMAT DRY | 1600 | 2500 | 2900 | 3000 |
|---|---|---|---|---|
| Standard version | X09600 | X09601 | X09602 | X09603 |
