RG WITH EXTRACTION ARM
Simple, inexpensive and effect type of extraction

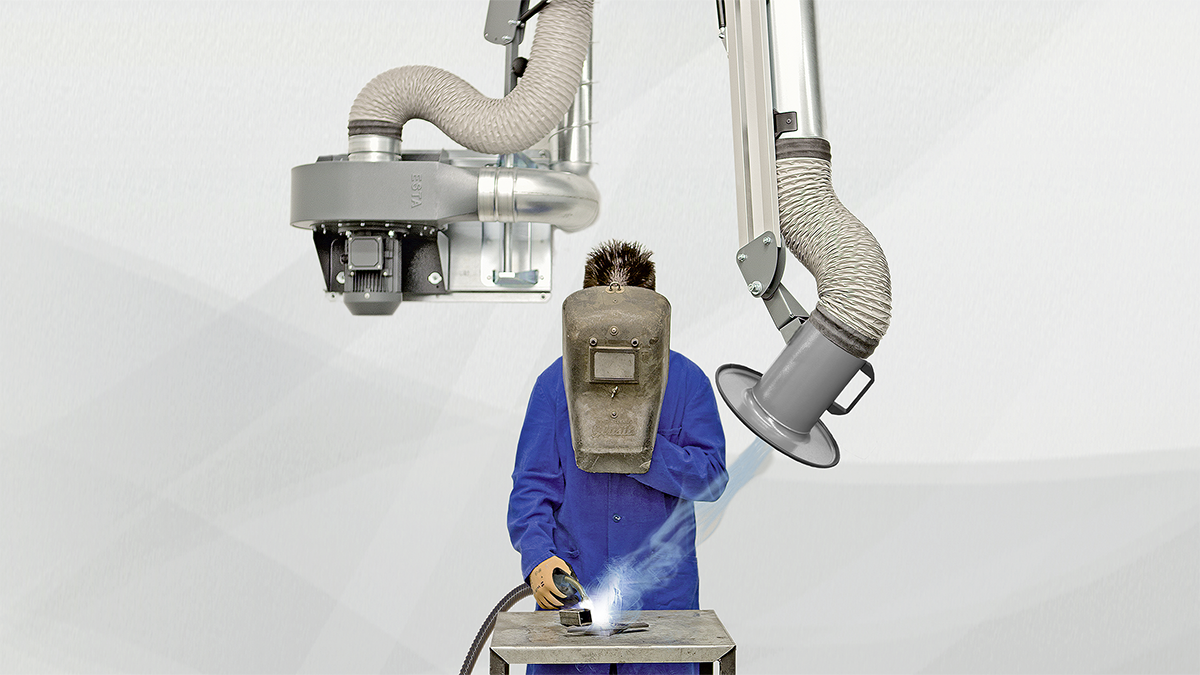

In this complete solution, dusts, fumes or vapours are captured via an extraction arm and then directed to the required area via a conveying hose or pipeline. The extraction arm and RG extraction fan form an extraction unit which shows a low space requirement and flexible application possibilities. The extraction fan is mounted to the ceiling or the wall. The extraction can move freely in the entire work area and are captured locally.
ESTA Winter Special
10% discount on extraction fans and more
Whether dust, welding fumes or chips – with the ESTA Winter Special, you can secure our top sellers at a promotional price!
Until the end of December, you will receive a 10% discount on our powerful RG series extraction fans and other selected extraction systems, such as the new DUSTOMAT DRY series of dust extractors and welding fume filters, and more.
Discover our offers now and start the new year with clean air!
Application RG series with extraction arm
Single- and multi station extraction in trade and industry
Direct capture of fumes, gases and vapours via an extraction arm
For exhaust air operation without filtration
Welding fumes
Soldering smoke
Dusts
Vapours
Stationary setup
Fixed extraction systems which can be connected next to processing machines.
Welding, soldering
Refilling, emptying, mixing
Complete solution made of RG extraction blower and extraction arm
Direct capture with high extraction output
Simple and efficient
Different outputs
Low space requirement through compact construction
The attachment bracket for ceiling assembly or wall assembly is included in delivery
- Stainless steel (V2A) in the food industry
- Motor assembled on left
- Variable blower connection
- Ignition source-free for extraction of inflammable substances
- A/C for RG-100 and RG-200
Downloads & data RG series with extraction arm
| RG with extraction arm | 100 | 200 | 300 |
|---|---|---|---|
|
Max. air flow m³/h | 1,000 | 2,000 | 3,000 |
|
Intake diameter mm | 100 | 150 | 180 |
|
Max. negative pressure Pa | 1,400 | 1,600 | 2,300 |
|
Nominal power* kW | 0.55 | 1.1 | 2.2 |
|
Dimensions (L/B/H) mm | 400 x 550 x 500 | 490 x 600 x 550 | 540 x 630 x 600 |
|
Sound level dB(A) | 80 | 82 | 84 |
*Mains voltage/ Mains frequency: 400V/50Hz
| RG with extraction arm | 100 | 200 | 300 |
|---|---|---|---|
| With extraction arm 2.0 m | 01111 | 01123 | - |
| With extraction arm 3.0 m | - | 01121 | 01131 |
| With extraction arm 4.0 m | - | 01122 | - |
CONTACT RG series with extraction arm
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
Accessories RG series with extraction arm
Extraction arms
For detection of welding fumes, soldering fumes, gases, vapors & dusts. Connection to extraction system or fan possible.
Extraction hoses
Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.
Pipe system
For connecting multiple suction points to a central extraction unit. Extensive range of rugged, high-quality finish spiral seam pipe parts.
