DUSTMAC F

WELDING FUME EXTRACTION SYSTEM FOR MULTIPLE EXTRACTION SITES

DUSTMAC F

IFA-certified central extraction system for welding fume category W3.

The DUSTMAC F series is used for simultaneous welding fume extraction in multiple work stations. The optional impact separator in the pipe intake ensures even air distribution in the filter chamber and reduces the risk of fire caused by sparks being sucked in. Thanks to its modular construction, the installation can also be extended later. DUSTMAC F-series filter cartridges can be cleaned inexpensively using ESTA ultra-sound filter cleaning whilst protecting the cartridge.

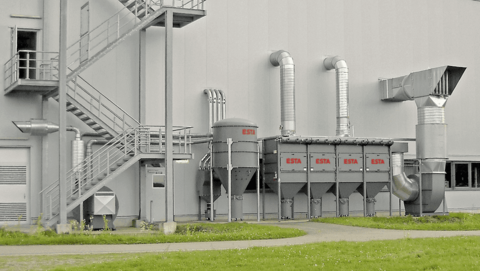

Gallery DUSTMAC F series

Application DUSTMAC F series

  • Large installations with multiple extraction points

  • Large capture hoods or cabins, for example in robot welding installations

  • All types of steel


  • Welding

  • Soldering

  • Welding fumes

Stationary setup

Fixed extraction installations which can be connected next to processing machines or centrally in production halls.

Jet-Pulse filter cleaning

The Jet-Pulse cleaning unit automatically cleans the filter cartridges individually automatically and during suction.

W3 Mark of conformity

For extraction of welding fumes with high alloy steels.

DGUV Test

Meets health and safety requirements.

  • Powerful welding fume extraction in multiple points, cabins, or hoods with large surface areas

  • Customer-specific versions

  • Modules can be retrofitted

  • Low operating costs thanks to cleanable long life filter cartridges

  • Jet-Pulse filter cleaning

  • Cleanable long life filter cartridges (dust class M)

  • IFA test certificate W3 for high-alloy steels
  • Pipe pre-separator
  • Switch cabinet series
    Basic/Comfort /Custom versions
  • Custom paint finish

Downloads & data DUSTMAC F series

DUSTMAC F-42 F-84 F-84 F-126 F-189
Max. air volume flow
m³/h
3,00 7,800 9,700 10,300 14,000
Intake/outlet diameter
mm
224/300 280/400 315/450 355/500 450/560
Max. negative pressure
Pa
2,600 3,800 3,800 4,400 4,800
Intake voltage
V
400 400 400 400 400
Drive power
kW
3.0 5.5 7.5 11,0 15.0
Filter surface
42 84 84 126 189
Number of filter elements
piece
2 4 4 6 9
Dust collection container
50 50 50 50 50
Dimensions (L/B/H)
mm
1,300 x 1,039 x 3,250 1,400 x 1,350 x 3,410 1,400 x 1,350 x 3,410 1,820 x 1,450 x 3,860 1,850 x 1,900 x 3,910
Weight
kg
440 540 540 740 880
DUSTMAC F-42 F-84 F-84 F-126 F-189
Standard design 663042 663084 663085 663126 663189
