DUSTOMAT DRY S

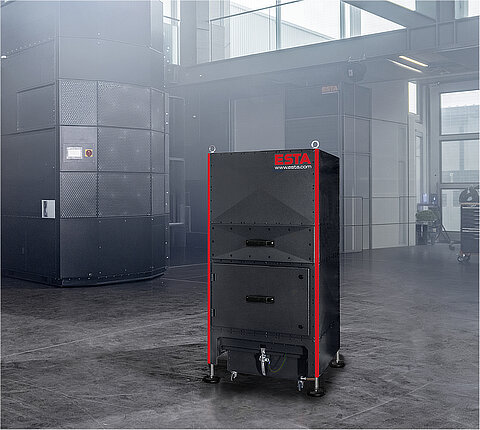

Configurable welding fume filter series for applications up to 2,900 m³/h
In the entry-level segment, the DUSTOMAT DRY welding fume filter series in size “S” offers a cost-effective solution for applications with air flow rates of 1,600 to 2,900 m³/h. These compact filter units reliably capture welding and soldering fumes generated during the machining of a wide variety of metals. They are suitable for both single-station and multi-station extraction systems – directly on processing machines, extraction tables or in combination with an extraction arm.
The modular unit design allows for a precisely tailored configuration of the filter packages with a maximum possible separation efficiency of up to 99.995%.
The flow-optimised design of the filter units, combined with 100% recirculation operation, ensures low operating costs whilst maintaining high extraction performance. Furthermore, the sound-insulated housing reduces noise emissions and noticeably improves working conditions for staff.
Thanks to their vertical design, the DUSTOMAT DRY S units require less than 1 m² of floor space, thereby saving valuable space in the production area.
Gallery DUSTOMAT DRY
- Single or multiple user extraction of welding fumes
- Welding of all metals
- Depending on the version, also suitable for carcinogenic welding fumes
- For direct extraction on processing machines and welding robots
- For connection to extraction arms, extraction tables, extraction hoods and shorter pipe systems
- Welding
- Soldering
- Lasering
- and many more
- Welding fumes
- Soldering fumes
- Laser smoke
- and many more
Mobile installation
Smooth-running and flexible in use, making it suitable for frequently changing locations.
Stationary installation
Stationary extraction systems that can be connected next to processing machines.
Manual rotation filter cleaning
Thanks to a rotary nozzle connected to the compressed air network, the filter lamellas are blown through evenly.
- Configurable: extraction power, filter package and system design
- Strong extraction power for optimal extraction results
- Aerodynamically optimised design for efficient air flow, resulting in low operating costs
- Low-noise system operation
- Recirculation / exhaust air operation possible
- Smooth-running castors
- Compact design
- Removable dust collection container for easy disposal
- Sturdy, durable steel construction
- Intuitive operation via a convenient touch display
- High level of operation and maintenance friendliness
- Suitable for medium performance ranges from 1,600 to 2,900 m³/h
- Available in four output levels
- Integrated impact separator for pre-separation of coarse and heavy particles
- Pre-separator for sparks, chips and dusts
- HEPA H 14 filter (separation efficiency ≥ 99.995 %)
- Downstream activated carbon filter for odour neutralisation
- Version with exhaust air connection piece
- Variable positioning of intake connection piece, control cabinet, etc.
- Other versions on request
Downloads & Data DUSTOMAT DRY
| DUSTOMAT DRY | 1600 | 2300 | 2800 | 2900 |
|---|---|---|---|---|
|
Max. volume flow m³/h | 1,600 | 2,300 | 2,800 | 2,900 |
|
Max. negative pressure Pa | 1,650 | 2,550 | 2,650 | 3,350 |
|
Nominal power kW | 1,1 | 2,2 | 3,0 | 4,0 |
|
Mains voltage V | 400 | 400 | 400 | 400 |
|
Mains frequency Hz | 50 | 50 | 50 | 50 |
|
Dimensions (L/W/H) mm | 790 x 600 x 1,920 | 1,030 x 845 x 1,680 | 1,030 x 845 x 2,170 | 1,030 x 845 x 2,170 |
|
Intake opening mm | 160 | 160 | 200 | 200 |
|
Sound pressure level dB(A) | 65.3 | 70.9 | 70.6 | 74.8 |
| DUSTOMAT DRY | 1600 | 2300 | 2800 | 2900 |
|---|---|---|---|---|
| Standard version | X09600 | X09601 | X09602 | X09603 |
Further performance levels
Dustomat Dry – Size M
The modular dust extractors in the DUSTOMAT DRY series are available in size ‘M’ with air flow rates of up to 6,400 m³/h and are ideal for single and multi-station extraction in areas with high dust levels.
This size also offers extended configuration options.
Configurable dust extractor DUSTOMAT DRY for maximum safety
CONTACT DUSTOMAT DRY
WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION
We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!
