ESTA Absaugtechnik & -anlagen
AIRBOX
ENERGY-SAVING MULTIPLAYER NOW AVAILABLE IN FOUR VERSIONS.

AIRBOX Family

NEW GENERATION OF EXTRACTION SYSTEMS PROTECT AGAINST DUST, WELDING FUMES, VIRUSES & ODOURS.

ESTA has further developed the AIRBOX product family and now offers the compact, energy-saving extraction systems in four versions. In addition to welding fumes, the mobile filter devices are now also suitable for capturing and filtering airborne dusts, odours and even viruses and bacteria. The devices can now also be used as a compact room ventilation system for smaller production areas.
All versions of the AIRBOX product family have EC fans on board and therefore ensure extremely quiet and, above all, energy-saving operation. The AIRBOX product range is easy on the wallet not only in terms of operating costs, but also in terms of their price – performance ratio. Thanks to their compact dimensions, the mobile devices can be placed flexibly in work areas. The integrated filter technology meets the very highest quality criteria and is designed for a long service life.


DISCOVER THE AIRBOX FAMILY

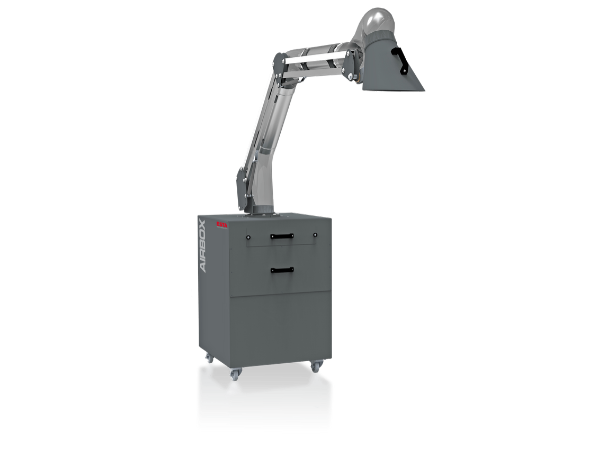

AIRBOX

MOBILE FILTER DEVICE FOR WELDING FUMES & DUST

As a mobile filter device for extracting welding fumes as well as free-flowing and dry dust, the AirBox enables users to deploy it flexibly at different workplaces in production. The extraction arm with a rotating and swivelling extraction hood offers a very high level of flexibility for at-source collection. The AirBox's integrated pre-separation system sorts out coarse particles in advance, thus ensuring a long service life for the main filter. The filter cartridge is equipped with high quality filter material of dust class "M". Its separation efficiency is 99.9 %. The cartridge can be changed easily and conveniently. The AirBox will also soon be available with the IFA test mark “W3” for extracting welding fumes when machining chrome-nickel steel.

  • At-source fumes and dust collection
  • Suitable for continuous operation
  • Compact and handy design
  • For use at different, changing workplaces
  • Simple and dust-free disposal of the collected material through a drawer
  • Dust class M filter cartridge
  • Quiet and energy-saving operation thanks to EC technology

  • IFA test mark W3 for high-alloy steels (available soon)
  • Rotatable, flexible extraction arm for mounting on the device
  • A extraction hood with optimised flow technology and small size
  • Operating hours counter

  • Stand-alone extraction with at-source collection in industry and trade
  • Suitable for welding fumes, free-flowing and dry dusts

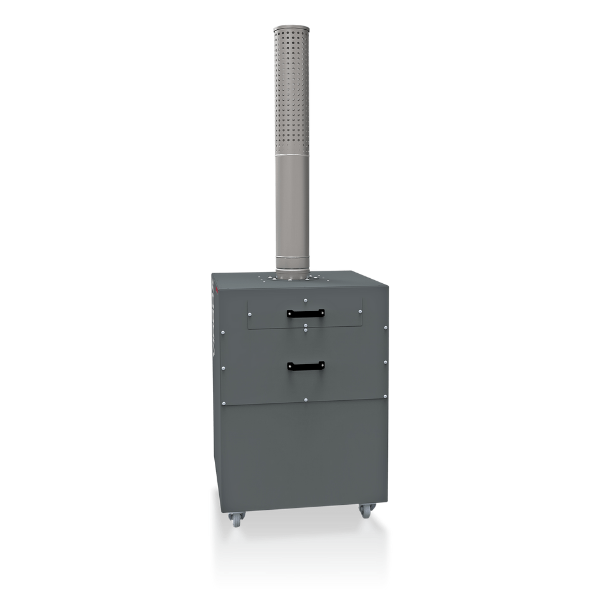

VIRBOX

ROOM AIR CLEANER IN TIMES OF COVID-19

Due to the permanent cleaning and movement of the ambient air, the VirBox can play an important role in the strategy to combat the coronavirus and ensure more safety for employees in the working environment, whether in industry, medicine, craft or trade. In addition to wearing masks and observing distancing rules, it is important to contain the dangers posed by viruses in enclosed rooms as much as possible.
The VirBox ensures a constant flow of air and, thanks to its high efficiency HEPA 14 filter, is able to separate 99.995 percent of the viruses bound in aerosols, so that the virus concentration in the ambient air at the workplace is reduced. The VirBox room air filter device ensures the uncomplicated collection of both particle-laden air as well as virus-infected aerosols – i. e., tiny droplets by means of a perforated pipe at the top of the device,. The extraction system works in recirculation mode. The cleaned air is returned to the work area via outlet grilles close to the floor, supplying employees with pure air to breathe. The circulating air filter system is therefore the ideal addition to a constant supply of fresh air in work rooms.

MORE ABOUT THE VIRBOX ROOM AIR CLEANER

  • Efficient ambient air collection
  • Class H14 filter cartridge - also suitable for filtering viruses and bacteria (degree of separation: 99.995 %)
  • Mobile use and suitable for continuous operation
  • Compact and handy design
  • Easy filter change
  • Quiet and energy-saving operation thanks to EC technology

  • Perforated tube on the top of the device for uncomplicated and optimal collection
  • Operating hours counter

  • Room air extraction in industry, trade and commerce
  • Permanent filtration of particle-laden air as well as virus-laden aerosols in the room air

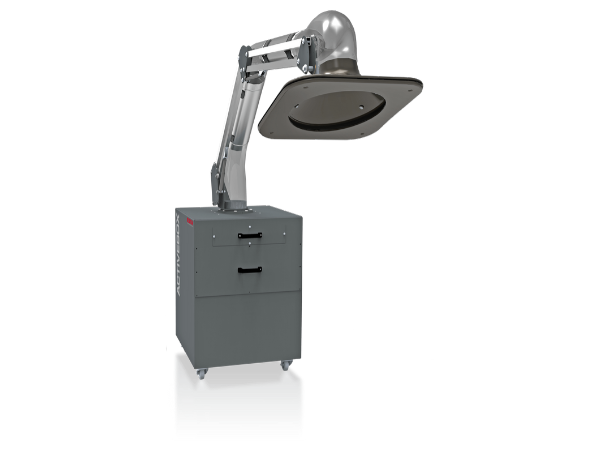

ActiveBox

REDUCES UNPLEASANT ODOURS

The ActiveBox is suitable for stand-alone extraction wherever process-related, unpleasant odours arise. Thanks to activated charcoal cartridges, the devices effectively reduce odour pollution in the workplace.
The additional G4 pre-filter also protects the activated charcoal cartridges (type A) from dusts and fumes. A flexible extraction arm with a flow-optimised hood is integrated into the "ActiveBox" filter device for at-source collection.

  • Efficient process air collection
  • Mobile use and suitable for continuous operation
  • Compact and handy design
  • Activated charcoal cartridges (type A) for good flow behaviour and handling of the activated charcoal
  • Quiet and energy-saving operation thanks to EC technology

  • Rotatable, flexible extraction arm for mounting on the device
  • Flow-optimised and patented extraction hood
  • Operating hours counter
  • G4 pre-filter for a longer service life of the activated charcoal cartridges

  • Stand-alone extraction with at-source collection in industry and trade
  • Suitable for gaseous environmental pollutants and to reduce unpleasant and / or process-related odours

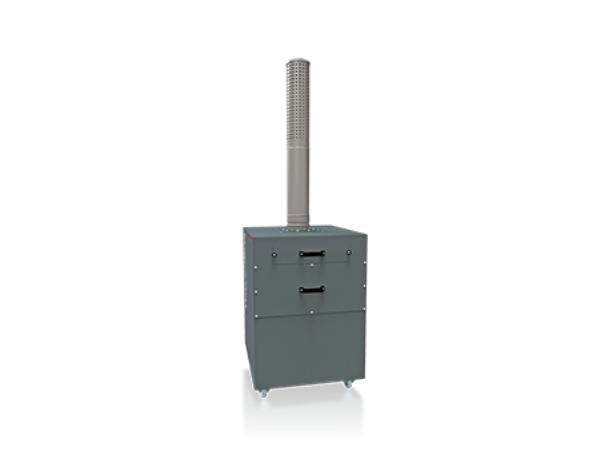

TowerBox

SUPPLEMENTARY ROOM VENTILATION SYSTEM FOR SMALLER PRODUCTION AREAS

With the TowerBox, ESTA offers a compact room ventilation system for welding fumes and airborne dusts. The device ensures a noticeable improvement in air quality - especially in smaller work areas. The TowerBox can be placed flexibly and effectively complements existing at-source extraction systems. The air containing welding fumes is captured via the perforated pipe on the top of the room ventilation system and is directed to the dust class “M” filter cartridge, where it is filtered. The cleaned air is returned via an air grille outlet close to the floor (recirculation mode).

  • Efficient fumes collection to improve room air quality
  • Mobile use and suitable for continuous operation
  • Compact and handy design, also suitable for use in confined areas
  • Simple and dust-free disposal of the collected material through a drawer
  • Dust class M Filter cartridge
  • Quiet and energy-saving operation thanks to EC technology

  • Perforated tube on the top of the device for uncomplicated and optimal collection
  • Operating hours counter

  • Room air extraction for welding fumes and airborne dusts in industry and trade
  • Supplementary solution to at-source extraction

Downloads & Data AIRBOX-Family

AIRBOX-Family AirBox W3 VirBox ActiveBox TowerBox
Max. airflow volume
m³/h
950 1,800 1,000 950
Connection diameter
mm
140 140 140 140
Connection voltage
V
230 230 230 230
Nominal frequency
kW
0.51 0.51 0.51 0.51
Filter area
13.57 14.6 1.21 13.57
Number of filter elements
units
3 1 (HEPA 14) 1 3
Activated carbon volume
l
- - 24 -
Number of activated carbon catridges
units
- - 6 -
Dimensions (L/W/H)
mm
692 x 660 x 959* / 2262 x 660 x 1976** 692 x 660 x 959*** / 692 x 660 x 1973**** 692 x 660 x 960* / 2223 x 660 x 1910** 692 x 660 x 959*** / 692 x 660 x 1973****
Weight
kg
approx. 100 approx. 100 approx. 100 approx. 100
Sound pressure level
dB(A)
68.5 30 - 53.0***** 68 53.0*****

* without extraction arm

** with extraction arm

*** without tube

**** with tube

***** with silencer package

Product Order No.
AirBox W3 55503
TowerBox 55504
VirBox 55505
ActiveBox 55506
