ROTARY PISTON BLOWER DKG
ROTARY PISTON BLOWER FOR HIGH-VACUUM USES

ROTARY PISTON BLOWER DKG

Low operating costs through high efficiency.

The DKG rotary piston blowers are especially designed for applications in which an even, high negative pressure is needed (high-vacuum area). The devices have a very steady characteristic curve. Thus, long, widely branched pipe systems with many extraction points can be connected. They work with extremely low noise and are suitable for the extraction of dusts and shavings due to their upstream filter unit.

Application DKG series

  • Multi-workstation extraction in industry

  • Applications needing a constant negative pressure

  • High-vacuum extraction

  • Shavings

  • Dusts

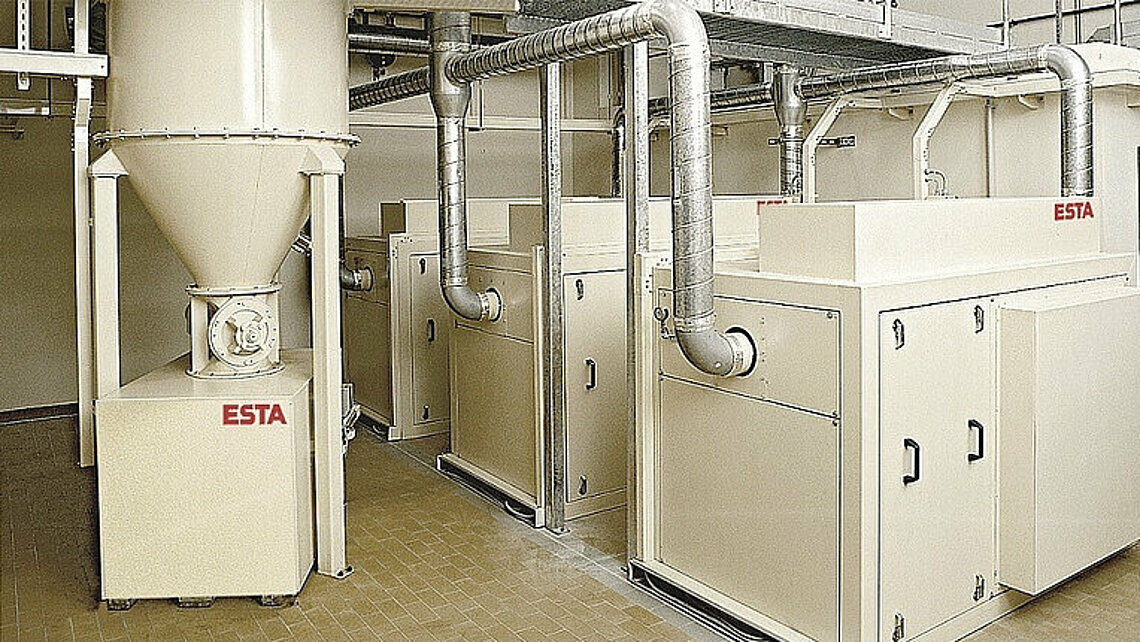

Stationary setup

Central extraction systems are able to carry out extraction on multiple machines in parallel from its location via a pipe system.

  • Constant negative pressure

  • Low operating noise through sound isolation and separate placement

  • Wear- and maintenance-free construction

  • Low operating costs through cleanable filters and high energy-efficiency

Downloads & data DKG series

Rotary piston blower DKG 11 15 37 75
Max. air volume
m³/h
510 840 1.860 3.720
Intake diameter
mm
80 100 150 200
Max. negative pressure
Pa
40,000 40,000 40,000 40,000
Nominal power*
kW
11.0 15.0 37.0 75.0
Motor speed
1/min
2,915 2,925 2,945 2,970
Dimensions (B/H/T)
mm
1,230 x 1,306 x 1,200 1,230 x 1,306 x 1,200 1,655 x 1,820 x 1,600 2,110 x 2,330 x 1,750
Sound level
dB(A)
71 72 78 85

*Mains voltage/ Mains frequency: 400V/50Hz

Rotary piston blower DKG 11 15 37 75
Standard model 302101 302102 302103 302104
