MOBILE HIGH-VACUUM DUST EXTRACTOR FOR PRECISE EXTRACTION

DUSTOVAC

POWERFUL AND QUIET HIGH VACUUM DUST EXTRACTOR.

The high-vacuum dust extractor DUSTOVAC is suitable for precise extraction of dust from handheld power tools. The mobile dust extractor is suitable for almost all types of dust. Thanks to its high negative pressure, which is generated by a maintenance-free side channel compressor, the DUSTOVAC can extract in parallel on several handheld power tools. Its high performance ensures that the mobile device can also be used without problems in multi-shift operation. The cleanable permanent filter cartridges keep operating costs low. The filter housing is patented. The tilting mechanism makes it easy to dispose of the collected material. The DUSTOVAC is also extremely quiet in operation.

Application DUSTOVAC

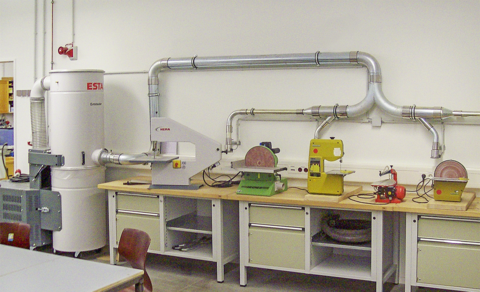

  • Single and multi-station extraction in industry and trade
  • Free-flowing dusts
  • Dry chips

  • Sawing, cutting, separating
  • Machining, milling

  • Transferring, filling, mixing

  • Sanding, polishing

  • Concrete dust
  • CFK / GFK dusts
  • Colour pigments
  • Metal chips, metal dusts
  • Plastic chips, plastic dusts
  • Mineral dusts
  • Stone dust
Die mobile Aufstellung des DUSTOMAT 4.

Mobile set-up

Easy and flexible to use makes it ideal for frequently-changing use locations.

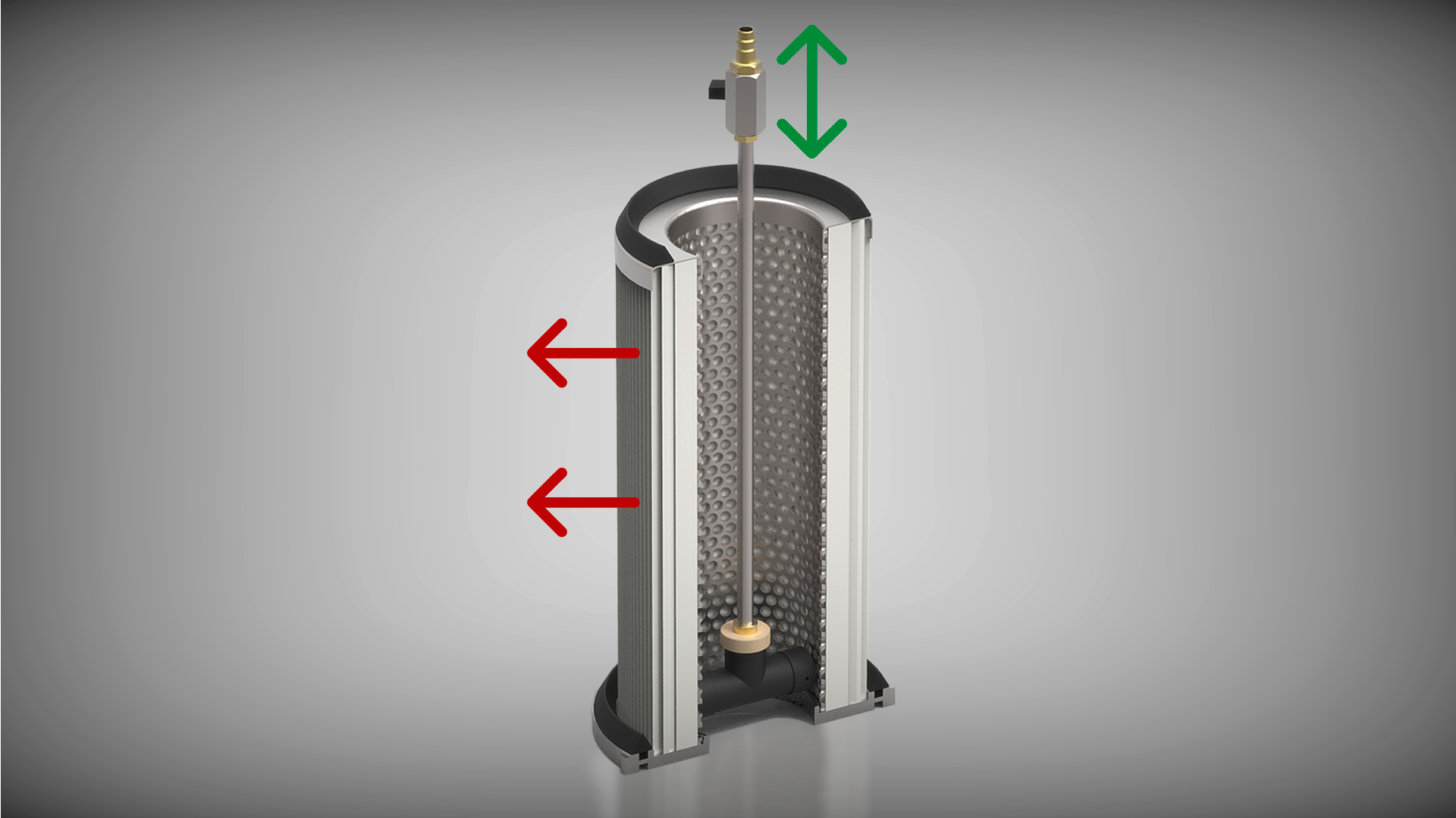

Manuelle Rotationsfilterreinigung bei der ESTMAC.

MANUAL ROTARY FILTER CLEANING

The filter blades are blown through evenly thanks to a rotary nozzle connected to the compressed air tank.

Jet-Pulse Filterabreinigung des DUSTOMAT 4.

Jet-Pulse filter cleaning

Jet-Pulse filter cleaning cleans the filter cartridges individually automatically during and after suction.

  • High suction power for precise extraction from handheld power tools
  • Suitable for nearly all types of dust
  • Can be used for multi-shift operation
  • Low operating costs thanks to cleanable filter cartridges
  • Low operating noise
  • Patented tiltable filter housing for easy dust disposal
  • Dust collection container with 200 litres volume

  • Two filter cleaning methods: manual and jet cleaning
  • Cleanable permanent filter cartridges (dust class M)

Downloads & Data DUSTOVAC

DUSTOVAC 5.5 7.5 13.0
Max. air volume flow
m³/h
480 850 1,100
Intake diameter
mm
70 100 125
Max. negative pressure
Pa
24.500 25.000 22.000
Intake voltage
V
400 400 400
Drive power
kW
5.5 7.5 13.0
Filter surface
9.6 9.6 9.6
Dimensions (L/W/H)
mm
1,830 x 782 x 2,040 1,830 x 782 x 2,040 1,830 x 782 x 2,040
Weight
kg
230 334 390
Sound emission
dB(A)
68 77 79
DUSTOVAC 5.5 7.5 13.0
Manual rotary filter cleaning 83.109 83.103 83.104
Jet-Pulse filter cleaning 83.112 83.107 83.108

Contact DUSTOVAC

WE ARE HAPPY TO PROVIDE A PERSONAL CONSULTATION

We can adapt our exhaust installations to your needs. Tailor-made, modular and individual. Ask us!

Do you have any questions about our products or services? We are happy to help!
How can we reach you?
How can we help you further?

Accessories DUSTOVAC

Extraction arms

For capturing welding- and soldering fume, gases, vapour and dusts. Connection to extraction system or fan possible.

Extraction hood

Optimal capture directly at origin. Flanged, square or modular system extraction hoods are available depending on the application.

Extraction hoses

Conveyor connection for solid, liquid and gaseous media. Flexible, vibration-absorbent and noise-damping.

Pre-separator

For pre-separation of dry, granulated dusts, shavings and sparks. Increases the service life of the main filter of the extraction installation.

Pipe system

For connecting multiple suction points to a central extraction unit. Extensive range of sturdy, high-quality finish spiral seam pipe parts.
