Ferdinand-von-Steinbeis-Schule & ESTA
Wet separator ensures clean air in the medical technology training workshop
Precision is a must in the training workshop at the Ferdinand-von-Steinbeis School in Tuttlingen. Here, prospective surgical mechanics learn how medical, surgical and cosmetic instruments are made—such as scalpels, forceps, tweezers, and scissors, which are later used in hospitals and surgeries. In the training workshop's grinding room, students work on stainless steel and titanium workpieces at eight manual workstations. The old extraction system was becoming outdated and needed to be replaced.
The search was on for a modern, energy-efficient solution for multi-station extraction that could also be integrated into the planned new building. With the new DUSTOMAT HYDRO wet separator in ATEX design from ESTA, the school meets all requirements – and ensures clean air in the training areas once again.
The requirements
- Extraction of stainless steel and titanium dust
- Safe capture of flying sparks
- Flexible multi-station extraction
- ATEX conformity
- Compact design
- Low operating costs
Die Lösung
DUSTOMAT HYDRO wet separator in ATEX design

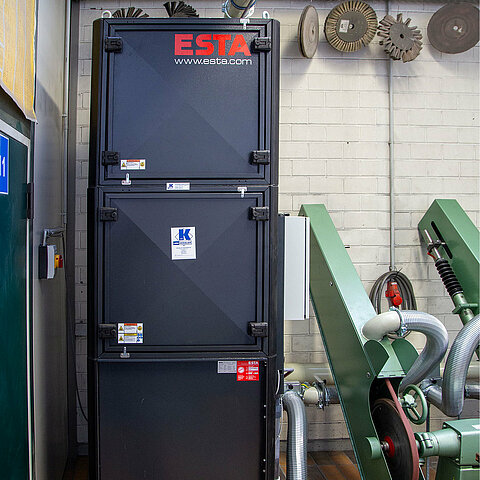

DUSTOMAT HYDRO
The modular wet separator DUSTOMAT HYDRO 3.500 ATEX is designed for eight extraction points in the grinding room and has a configurable filter package.

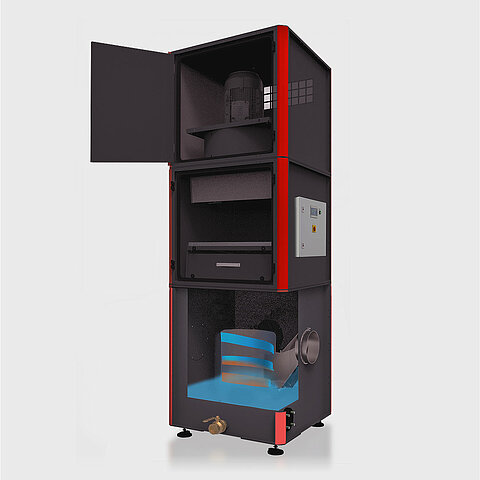

Multi-stage filtration
The multi-stage filter system features a patented water separation technology, which, in combination with the downstream dry filter package, achieves a separation efficiency of up to 99.995%.

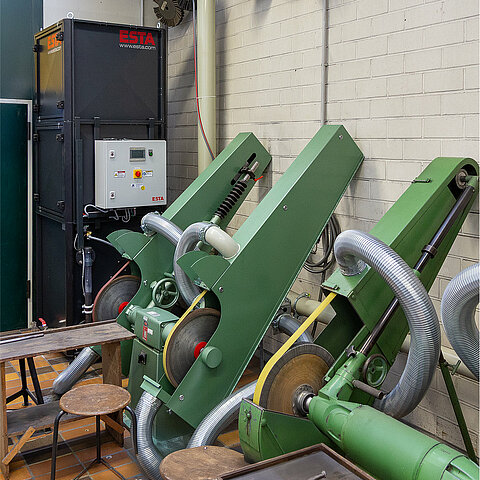

Pipe system
The spiral duct piping system is equipped with manual shut-off valves so that the extraction capacity can always be switched on exactly where it is needed.

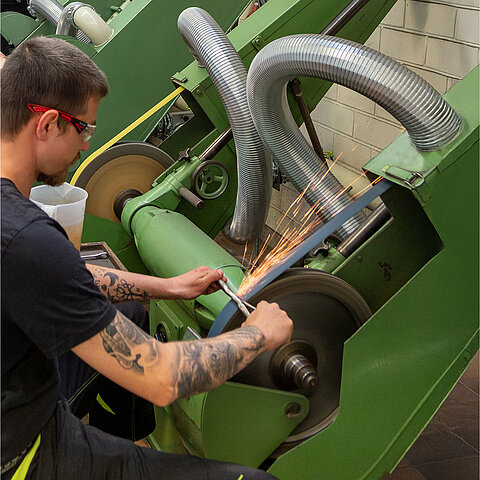

Direct extraction
The grinding dust produced is collected via the suction nozzles on the grinding machines and fed to the wet separation system.
TECHNISCHE DATEN & HIGHLIGHTS
- Filter unit: Dustomat HYDRO 3,500 ATEX
- Max. air volume flow 3,500 m³/h
- Drive power 5.5 kW
- Direct extraction via suction nozzle
- Piping system: approx. 10 m
- Discharge type: dust collection box
- Safe solution for flying sparks: Patented wet separation system
- Flexibly adaptable: For up to eight extraction points
- Maximum safety: ATEX-compliant for combustible dusts
- Modular design: Performance, filter package and structure can be individually configured
- Low maintenance: Durable technology, robust workmanship
- Energy efficient: Recirculation mode saves energy costs in winter
- Compact design: Wet separator also fits into new buildings
Economical energy and water consumption
Customer testimonial
Achim Pauli
technology teacher at the Ferdinand-von-Steinbeis School„Occupational safety is a top priority at our vocational school; we can't leave anything to chance. With the new wet separator, we are creating optimal learning conditions for our students. We protect them from harmful dust, and the workplaces also stay clean.“
Services that convinced the vocational school
- Personal contact with the qualified sales area manager
- Sound technical advice in the field of ATEX
- Optimal design of the system based on flow analysis
- Configuration of the extraction system as required
- On-site measurements
- Assembly & commissioning by ESTA fitters
- Spare parts and accessories conveniently available in the ESTA Shop
- Support throughout the entire life cycle of the product
Der DUSTOMAT DRY für Ihre Anwendung
- Configurable: Performance, filter package, system design
- High separation efficiency thanks to multi-stage filtration (up to ≥ 99.995%)
- Patented water separation technology (separation efficiency of 98.7% in the first filter stage)
- Powerful suction for optimal extraction results
- Flow-optimised design for efficient airflow, resulting in low operating costs
- Low-noise system operation
- Recirculation / exhaust air mode possible
- Intuitive operation via convenient touch display
- Easy to operate and maintain
Nassabscheider DUSTOMAT HYDRO mit innovativer Abscheidetechnik | ESTA Absaugtechnik
LKU Kessler – our strong local partner
Our local partner, LKU Kessler, a leading dealer in the field of process air technology and industrial ventilation, was in charge of the project at the Ferdinand-von-Steinbeis School. In addition to consulting and planning, LKU Kessler also handled the installation and commissioning of the extraction system.
