HIGH-VACUUM EXTRACTION AND FILTER DEVICE FOR WELDING FUMES

SRF SK

Continuous-running for low to medium fume volumes.

The high vacuum welding fume filters of the SRF SK series can be used to extract from multiple welding torches at the same time via a connected pipe. The high negative pressure guarantees optimum suction force, even at larger distances. Thanks to the side channel blower acting as a suction unit, devices can also be used in uninterrupted operation. SRF SK models are in four power ratings.

Gallery SRF SK series

Application SRF SK series

  • For direct extraction in welding torches

  • Normal- and uninterrupted operation

  • Unalloyed and low-alloyed steels

  • Connection to pipeline

  • Welding

  • Soldering

  • Welding fumes

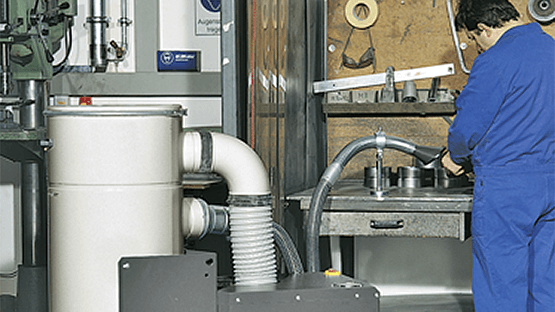

Mobile set-up

Easy and flexible to use makes it ideal for frequently-changing use locations.

Manual standard filter cleaning

The cartridge filters can be blown through effectively from the inside out manually thanks to a compressed air pistol.

Fully-automatic filter cleaning

Fully-automatic filter cleaning cleans the filter cartridges individually after the fan has come to a stop.

Jet-Pulse filter cleaning

Jet-Pulse filter cleaning cleans the filter cartridges individually automatically during and after suction.

  • Can be used in up to eleven work stations

  • Suitable for uninterrupted operation

  • Low operating costs thanks to cleanable long life filter cartridges

  • Low operating noise

  • High-vacuum welding fume filter with side channel blower for high suction force in multiple points

  • Filter cleaning with compressed air pistol, pneumatic or jet-pulse filter cleaning

  • Cleanable long life filter cartridges (dust class M)

  • Custom voltage

  • Exhaust air ports

  • Custom paint finish

Downloads & data SRF SK series

SRF SK-2.2 SK-5.5 SK-7.5 SK-13.0
Max. air volume flow
m³/h
300 480 850 1.100
Intake diameter
m³/h
50 70 100 125
Max. negative pressure
Pa
21,000 24,500 25,000 22,000
Intake voltage
V
400 400 400 400
Drive power
kW
2.2 5.5 7.5 13.0
Filter surface
10 15 15 15
Dimensions (L/B/H)
mm
1,320 x 530 x 1,190 1,680 x 780 x 1,300 1,690 x 780 x 1,300 1,690 x 780 x 1,300
Weight
kg
150 230 230 230
Sound emission
dB(A)
73 74 76 82
SRF SK-2.2 SK-5.5 SK-7.5 SK-13.0
manual cleaning (compressed air) 55146 55161 55147 55148
pneumatic cleaning 55149 55162 55150 55151
Jet-pulse filter cleaning - 55163 55152 55153
